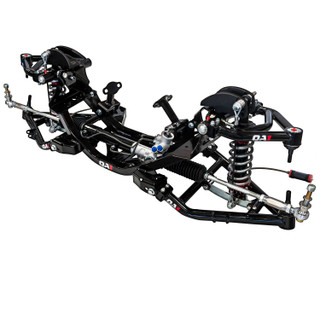

Upgrade your '73-'87 squarebody C10 for a significantly improved driving experience and performance while achieving the perfect stance. This kit provides everything you need to convert your Chevy C10's front end to a coil-over setup, complete with a tubular crossmember and rack-and-pinion steering. It’s a great way to overhaul your C10 suspension in one go, giving you adjustable ride height for the perfect stance with up to 8” of drop. All while dialing in the ideal ride quality and performance for your application, and saving 140 lbs. vs stock.
RACK & PINION STEERING
Powered rack and pinion steering offers quicker steering and a tighter feel. Plus, increase steering angle when fitting larger wheels and tires, and improve geometry for enhanced drivability.
INCREASED GROUND CLEARANCE
The factory crossmember and control arms on a C10 sit quite low to the ground. QA1's design raises these components, making the undercab frame rails the truck’s lowest point. To ensure ample shock travel at this lower height, QA1 designed new upper shock mounts that increase travel, delivering a great ride and performance, even at low heights.
MOD SERIES COILOVERS
Take total control of your suspension with 4-way adjustable valving, offering independent tunability of both high and low speed compression and rebound. QA1 MOD shocks offer the most versatile package for ultimate performance in any application. When you are making no compromises, the MOD series coilover is the shock for you.
EASY, BOLT-IN INSTALLATION
The crossmember comes powder coated and ready to install. No need to cut or weld your frame. It easily locates the steering rack, and you can choose mounts (sold separately) for common engines.
MODULAR ENGINE MOUNTS
Choose from modular engine mounts (sold separately) that allow you to reuse your existing transmission mount and driveshaft. Kits are available for small block Chevy, big block chevy and LS applications. DIY mounts are also available if you want to customize the location of your engine.
MADE IN THE USA
QA1 C10 kits are proudly made in Lakeville, MN.
FEATURES & BENEFITS
- Modern Steering: Switch to rack-and-pinion steering for quicker, tighter control, perfect for handling bigger wheels and better drivability.
- Adjustable Ride Height: Dial in the perfect stance with up to 8” of drop, all while keeping a smooth ride and performance.
- Lightweight Design: Drop 140 lbs. from your truck compared to stock parts, giving you a more responsive and agile driving experience.
- Easy Bolt-On Install: The crossmember comes ready to go—just bolt it in, no cutting or welding needed, for a hassle-free upgrade.
- Made in the USA: Proudly built in the USA, giving you top-notch quality and reliability for your truck.
FITMENT NOTES
- If you already have QA1’s coil-over system, check out our retrofit kits to use your existing components
- Total drop range depends on wheel/tire fitment
- Will require you to trim inner fenders
- Engine mounts are year-range specific to maintain OE bellhousing location
- Optimized bump steer settings require at least 18” wheels
- 18” wheels can run up to 6” of backspacing
- 20” wheels can run up to 7” of backspacing
- Requires use of 1973-1987 C10 spindles
- May require different headers and oil pan (Stock SBC & BBC pans fit)
- Steering shaft is not included
- May require new power steering hoses depending on fittings, pump and engine placement
Specifications
- Shock Valving
- MOD Series
- Spring Rate
- 850lb/in.
