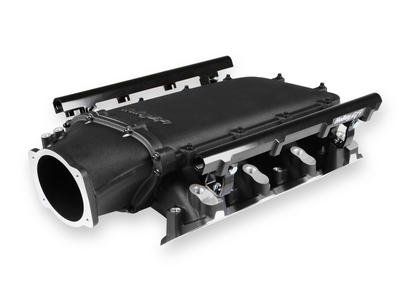

Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind. The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front configuration. The LS3 Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads•
- Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
- Low height to fit under a stock or mildly modified hood in the front configuration
- Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
- Clears C6 Corvette cowls and hoods without modification
- Available with single or dual injector provisions and a burst panel flange.
- High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
- Billet options for the top and throttle body adapters are available seperately.
| Basic Operating RPM Range | 3500-8000 RPM |
|---|---|
| Brand | Holley EFI |
| Burst Panel Compatible | Yes |
| Category | Air and Fuel Delivery |
| Intake Manifolds | |
| Color | Black |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Black |
| Flange Style | EFI |
| Front Height | 6.86" height with throttle body adapter |
| Front Maximum Height | 6.86 IN |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Injector Quantity | Single |
| Inlet Location | Front |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Ultra Lo-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| RPM Power Band | 3500-8000 RPM |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Included | No |
| Warranty | Limited 90 Day |
| UPC | 090127100929 |
| Part Number | 300-680BK |
Emissions
3
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
