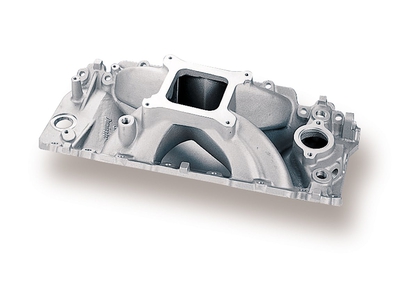

Carburetor Intake Manifold 396ci-502ci with Rectangular Port Heads
Features:
- Single Plane/Open Plenum Design
- Deep Plenum Design with Isolated Runners
- 4150 Square Bore Carburetor Mounting Flange
- Power band: 4500-8500 RPM
- Port Size: 2.30” height 1.60" width
- Height: Front 4.77", Rear 6.16"
Specs
| Basic Operating RPM Range | 4500-8500 R3 |
|---|---|
| Brand | Holley |
| Carburetor Flange | Square/4150 |
| Carburetor Studs Included | No |
| Category | Intake Manifolds |
| Category Filter | Intake Manifolds |
| Color | Natural |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Chevy Big Block V8 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 4.77 inch |
| Front Maximum Height | 4.77 IN |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | High Rise |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Product Type | Intake Manifold |
| Rear Height | 6.16 inch |
| Rear Maximum Height | 6.16 IN |
| Removable Runners | No |
| RPM Power Band | 4500-8500 |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Warranty | Limited 90 Day |
| UPC | 090127053270 |
| Part Number | 300-5 |
