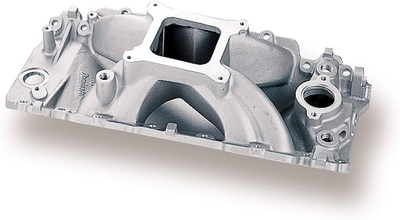

Carburetor Intake Manifold 396ci-502ci with Oval Port Heads
Features:
- Single Plane/Open Plenum Design
- Deep Plenum Design with Isolated Runners
- 4150 Square Bore Carburetor Mounting Flange
- Power band: 4500-8500 RPM
- Height: Front 4.75", Rear 6.25"
- Port Size: 1.85” height 1.60" width
Specs
| Basic Operating RPM Range | 4500-8500 R3 |
|---|---|
| Brand | Holley |
| Carburetor Studs Included | No |
| Category | Air and Fuel Delivery |
| Intake Manifolds | |
| Category Filter | Intake Manifolds |
| Color | Natural |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Chevy Big Block V8 |
| Finish | Satin |
| Front Height | 4.77 inch |
| Front Maximum Height | 4.77 IN |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | High Rise |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Product Type | Intake Manifold |
| Rear Height | 6.16 inch |
| Rear Maximum Height | 6.16 IN |
| Removable Runners | No |
| RPM Power Band | 4500-8500 |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Warranty | Limited 90 Day |
| UPC | 090127053232 |
| Part Number | 300-4 |
Emissions
3
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
No reviews currently exist for this item.
