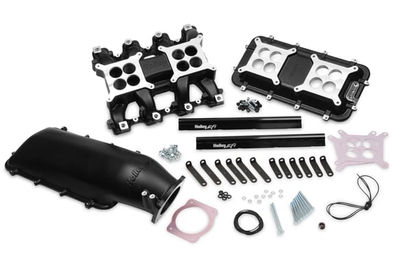

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications. This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
Features:
- 1500-6500RPM Power Band
- 92MM EFI Plenum
- 95MM EFI Plenum
- Overall Height of 10.44 inches
- Mid-Rise manifold for excellent street/strip performance
- Fits GM LS3/L92 engines
- Black Ceramic Coating for an aggresive look in your engine compartment
| Basic Operating RPM Range | 2500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Intake Manifolds | |
| Category Filter | Intake Manifolds |
| Color | Black |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 4 |
| Engine | GM LS3/L92 |
| Finish | Black |
| Front Height | 10.44 inch |
| Front Maximum Height | 10.44 IN |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Mid Rise |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold |
| Rear Height | 9.99 inch |
| Rear Maximum Height | 9.99 IN |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| RPM Power Band | 2500-7000 RPM |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Bore Diameter | 95 MM |
| Throttle Body Included | No |
| Warranty | Limited 90 Day |
| UPC | 090127715956 |
| Part Number | 300-135BK |
Emissions
4
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
