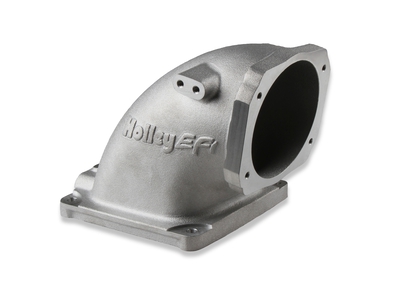

These cast aluminum EFI intake elbows allow the use of GM LS throttle bodies on any intake manifold w/ the 4500 mounting flange. Our design incorporates an optimized transition from the throttle body to the intake plenum for maximum airflow and distribution. Dual throttle cable mounting bracket bosses are included while the 4500 flange pattern allow the elbow & throttle body to be mounted forward, sideways, or rearward. The throttle bracket is included. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4500 gasket, and 100° throttle body angle for extra hood clearance. Includes billet MAP sensor port cover, gaskets & hardware. The port design spacing will also allow a transducer to be used if a MAP sensor is not needed. The intake flange has an o-ring groove for a positive flange seal and the o-ring is included as well.
Features:
- Fits GM LS Throttle Bodies
- 105mm Throttle Body Opening - 100° Mounting Angle
- Fits Intakes w/ 4500 Flange- designed to use the included o-ring for sealing
- The 4500 square flange pattern allows Forward, Sideways or Rearward Throttle Body Mounting
- LS3 Style MAP Sensor Mounting
- (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT
- (2) Throttle Linkage Mounting Bosses
- Cast aluminum finish
- Overall Height 6.4”
| Brand | Holley EFI |
|---|---|
| Category | Intake Manifolds |
| Color | Silver |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Silver |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Height | 6.4 inch |
| Material | Cast Aluminum |
| Product Type | Intake Elbow |
| Throttle Bore | 105mm |
| Warranty | Limited 90 Day |
| UPC | 090127063446 |
| Part Number | 300-248 |
Emissions
3
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
