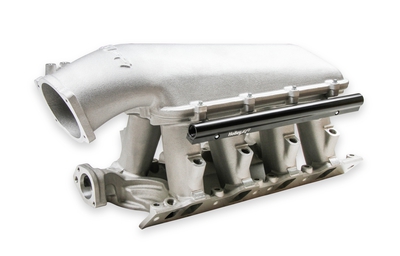

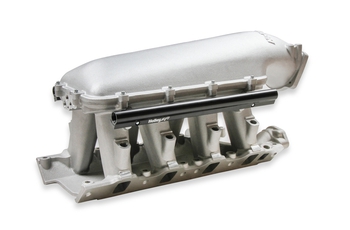

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.
Features:
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Manifold is designed for a 8.2" SBF deck height.
- The 8.2 SBF manifold is available to work with 105MM throttle bodies
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category | Intake Manifolds |
| Color | Natural |
| Construction | Cast Aluminum |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Ford Small Block |
| Finish | Satin |
| Flange Style | EFI |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Cast Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Included | No |
| Throttle Bore | 105mm |
| Warranty | Limited 90 Day |
| UPC | 090127062647 |
| Part Number | 300-273 |
Emissions
3
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
