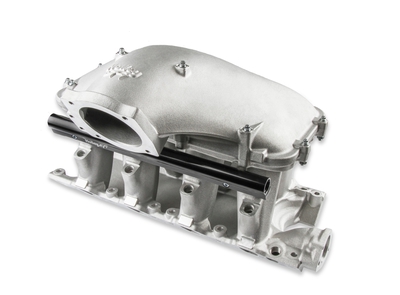

This EFI 351W Hi-Ram manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. *** Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Features:
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Manifold is designed for a 9.5" deck height.
- The 351W manifold is available to work with 105MM throttle bodies
- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
- Designed for side mounted throttle bodies
- Allows room for designing boosted applications
- Requires the Use of Holley EFI Dual Sync Distributor - 565-111
| Basic Operating RPM Range | 1500-7000 R3 |
|---|---|
| Brand | Holley |
| Carburetor Studs Included | No |
| Category | Air and Fuel Delivery |
| Color | Natural |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Ford 351W |
| Finish | Satin |
| Flange Style | EFI |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Throttle Bore | 105mm |
| Warranty | Limited 90 Day |
| UPC | 090127072660 |
| Part Number | 300-310 |
Emissions
3
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
