Overview
Holley Engineering has taken its LS Swap oil pans to the next level! The 302-3 design has even more sump clearance, includes two 1/2-inch NPT oil return bosses, and can clear a 4.00-inch stroke crankshaft. Just like the 302-2, the newly designed 302-3 will fit the 1955-1987 GM Muscle Cars and Trucks that need a little more clearance in the front of the oil pan. However, the new design will also fit the Ford Fox body Factory K-member and was designed to clear the Fox Body rack and pinion too. It's a win-win for more LS conversions.
Features:
- Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan
- Profile of the sump has been revised to provide extra chassis and steering rack clearance
- Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
- NOTE – Oil pan #302-3 will clear a 4.00-inch stroke crankshaft.
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)
- Can be used with Earls oil cooler adaptor LS0012ERL and LS0013ERL, or Earls oil cooler block off plate LS0020ERL with 1/8-inch NPT port
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

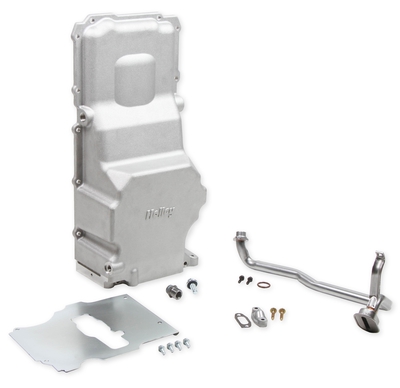

- Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
Specs
| Application | GM LS Engines |
|---|---|
| Baffled | No |
| Brand | Holley |
| Capacity | 5.6 QT |
| Category | Engine |
| Choose Your Part | Oil Pan Kit |
| Color | Silver |
| Crank Shaft Wiper Included | No |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Emission Code | 6 |
| Engine | GM Gen III/IV (LS) |
| Finish | Natural Cast |
| Grade Type | Performance |
| Material | Aluminum |
| Maximum Stroke | 4.00" |
| Oil Pan Capacity | 5.6 Quarts |
| Oil Pan Type | Cast |
| Oil Return Size | 1/2" NPT |
| Part Type | Engine Oil Pan |
| Pickup Included | Yes |
| Product Type | Oil Pan Kit |
| Sub Category | Cylinder Block Components |
| Sump Location | Rear |
| Sump Type | Wet |
| Turbo Oil Drainback | Yes |
| Warranty | Limited 90 Day |
| Windage Tray Included | No |
| UPC | 090127018521 |
| Part Number | 302-3 |
No reviews currently exist for this item.
