FUEL PUMP, VR2-DUAL INLET
Street/Strip Carb or EFI Applications Supports up to 4400 EFI or 4800 Carb HP Compatible with Pump Gas, Race Gas, Methanol and E85*
Overview

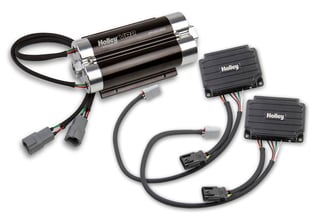

Holley set the bar in 2011 with the release of the HP and Dominator in-line fuel pumps. In 2015, Holley has raised the bar again with the introduction of the VR1 and VR2 Brushless in-line fuel pumps. Featuring brushless pump technology and a twin screw rotor design, the VR1 and VR2 in-line fuel pumps are capable of high pressures and flows while maintaining a low amperage draw and quiet performance. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85* and can maintain pressures of 130 PSI and up to 335 GPH flow**. Fueled by TI Automotive. The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility. **At 13.8V * Overall pump dimensions: 9.5" Long; 4.75" Wide; 2.75" Tall
Features:
- Capable of 130 PSI while providing significant flow forced induction applaications where belt driven pumps are normally used.
- Unlike other pumps, the VR Series are built for continuous duty if needed.
- The dual pump models are designed for endurance racing where both pumps are used or one can be a reserve pump.
- Billet aluminum construction for durability and good looks
- Features a dual 10 AN O-ring inlet and a single 10 AN O-ring outlet
- High flow and high pressure with low amperage draw
- Can be fully submerged in the fuel cell or chassis mounted
- Maximum amp draw of 38 AMPS for the VR2
- Holley also offers a complete line of fuel filters and fuel pressure regulators that are designed to work as a system with these pumps
About Holley
Specs
| Application | Universal |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Free Flow GPH | 335 @ 13.8 Volts |
| Free Flow LPH | 1250 |
| Fuel Delivery Type | Carburetor |
| Fuel Injection | |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| EFI | |
| Fuel Type | E85 |
| Gasoline | |
| Methanol | |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 7/8-14 IN |
| Inlet Qty | 2 |
| Inlet Size | 10 AN O-ring |
| Inlet Type | 10 AN ORB |
| Internal Or External | Internal External |
| Material | Aluminum |
| Maximum Amperage Draw | 38 68 |
| Maximum Flow Rating | 335 GPH |
| Maximum Pressure | 130 PS |
| Negative Ground | Yes |
| Outlet Quantity | 1 |
| Outlet Size | 10 AN O-ring |
| Outlet Type | 10 AN ORB |
| Part Type | Electric Fuel Pump |
| Product Type | Brushless Fuel Pump |
| Pump Body Color | Black |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12-18.5 2H |
| Warranty | Limited 90 Day |
| UPC | 090127731178 |
| Part Number | 12-3000-2 |
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Tech Resources
Warranty Information
Limited 90 Day: See Details
