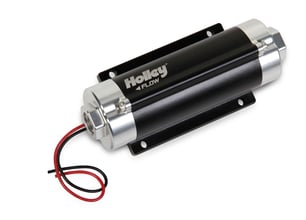

FUEL PUMP, HP LOW FLOW ELECTRIC
Street/Strip Carb or EFI Applications Supports up to 600 EFI or 730 Carb HP Compatible with Pump or Race gas
Overview
Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. The 12-600 features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-890 fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi
Features:
- Billet aluminum construction for durability & good looks
- -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
- Proven durability beyond 3,000 hours in gasoline
- Weighs only 3.1 lbs.
- 10 AMP maximum amp draw
- Not designed for use on aircraft of any type.
About Holley
Specs
| Application | Universal |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Forced Induction HP@43PSI | 450 |
| Forced Induction HP@60PSI | 380 |
| Free Flow GPH | 67 |
| Fuel Delivery Type | Carburetor |
| Fuel Injection | |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| EFI | |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| GPH@43PSI | 48 |
| GPH@60PSI | 41 |
| GPH@8PSI | 65 |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 7/8-14 IN |
| Inlet Size | 10 AN O-Ring - 7/8-14 SAE |
| Inlet Type | 10 AN ORB |
| Internal Or External | Internal External |
| LPH@43PSI | 181 |
| LPH@60PSI | 155 |
| LPH@8PSI | 230 |
| Material | Aluminum |
| Maximum Amperage Draw | 10 68 |
| Maximum Flow Rating | 65 GPH |
| Maximum Pressure | 80 PS |
| Naturally Aspirated HP@43PSI | 600 |
| Naturally Aspirated HP@60PSI | 500 |
| Naturally Aspirated HP@8PSI | 730 |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/4-16 IN |
| Outlet Quantity | 1 |
| Outlet Size | 8 AN O-Ring - 3/4-16 SAE |
| Outlet Type | 8 AN ORB |
| Part Type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Black Anodized |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12-18.5 2H |
| Warranty | Limited 90 Day |
| Wire Quantity | 2 |
| UPC | 090127689042 |
| Part Number | 12-600 |
Service Parts
- Street/Strip Carb or EFI Applications Supports up to 600 EFI or 730 Carb HP Compatible with Pump or Race gas$398.95Qty:
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
