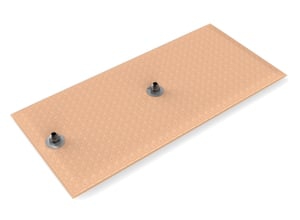

ARCA HYDRAMAT 30X14 RECT - SIDE/CENTER O
Center and Side outlet pick-up with -10 AN male fitting. Fitting location designed for road course or circle track use. Spec part for ARCA racing series.
Overview
The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution! Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.
Features:
- Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells
- Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling
- Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions
- Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered
- As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available
- Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions
- Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity
- Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump
- Can be folded and compressed for easy installation through a variety of fuel cell openings
- HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells
- Works with Alcohol, Ethanol, Methanol, and E-85 fuels
- Works with 2-cycle oil blends as high as 20:1
- Not for use with most oils (see previous point for exceptions)
- Not for use with diesel fuels
About Holley
Specs
| Adapter AN Size | 10 AN Male |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Color | Beige |
| Emission Code | 5 |
| Grade Type | Performance |
| Length | 30 inches |
| Micron | 15 |
| Product Type | HydraMats |
| Warranty | Limited 90 Day |
| Width | 14 inches |
| UPC | 090127110232 |
| Part Number | 12-925-1 |
Service Parts
- Hot Street/Race EFI Applications Post Filter 10 Micron$121.46Qty:
- Available for Any Plumbing Situation And Many Custom Applications.$13.39Qty:
- Available for Any Plumbing Situation And Many Custom Applications.$20.70Qty:
- HydraMat Install Magnet Kit - Disc Style (for use with polypropylene or polyethylene fuel tanks)$41.69Qty:
- ARCA Road Course Hose Assembly Kit - Black Anodized Fittings. Includes plumbing for inside fuel cell using Hydramat # 12-925 (Hydramat- available separately).$279.95Qty:
- HydraMat Install kit (Click Bond style) for Steel/Aluminum Fuel TanksQty:
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
