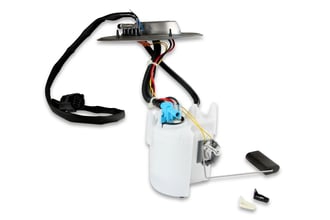

255LPH DROP-IN FUEL MODULE 98 MUSTANG(EX
Overview
Holley now offers offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks. These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 600+ horsepower.
Features:
- Complete drop-in fuel module assembly
- Integrated fuel storage and filtration technology
- Built in, pre-calibrated fuel level sensors
- Plug and play wiring harnesses
- Capable of supporting 600+ hp right out of the box
- Designed for return line and pulse width modulation (PWM)
About Holley
Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.
Specs
| Application | 1998 Ford Mustang |
|---|---|
| Average Current Draw | 10.4 68 |
| Average Flow Rating | 255 LPH |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Connector Color | Black |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Emission Code | 5 |
| Free Flow GPH | 67 |
| Free Flow LPH | 255 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel System | EFI |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Height | Standard |
| Housing Material | Plastic |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 3/8 inch Barb |
| Inlet Type | Barb |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Maximum Pressure | 60 PS |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 5/16 Barb |
| Outlet Type | Barb |
| Part Type | Fuel Pump Module Assembly |
| Product Type | Fuel Pump Module |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Specific |
| Voltage | 12 2H |
| Warranty | Limited 90 Day |
| Wire Harness Included | Yes |
| Wire Quantity | 4 |
| UPC | 090127717950 |
| Part Number | 12-944 |
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
