FUEL PUMP, VR-1
Overview

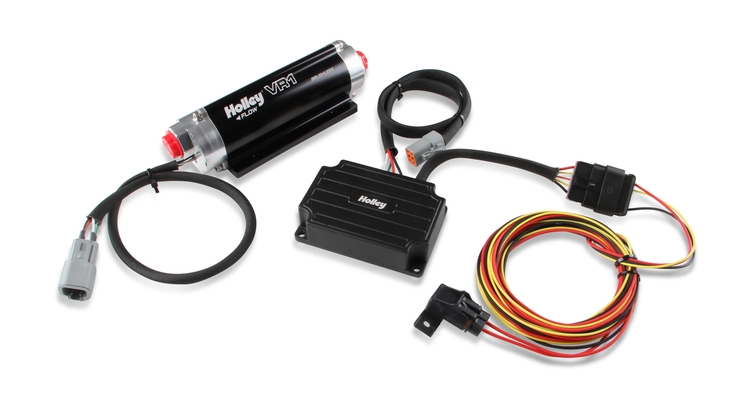

Holley set the bar in 2011 with the release of the HP and Dominator in-line fuel pumps. In 2015, Holley has raised the bar again with the introduction of the VR1 and VR2 Brushless in-line fuel pumps. Featuring brushless pump technology and a twin screw rotor design, the VR1 and VR2 in-line fuel pumps are capable of high pressures and flows while maintaining a low amperage draw and quiet performance. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85* (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 335 GPH flow**. Fueled by TI Automotive. The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility. **At 13.8V * Overall pump dimensions: 8.75" Long; 3" Wide; 2.75" Tall
Features:
- Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
- Unlike other pumps, the VR Series are built for continuous duty if needed.
- Billet aluminum construction for durability and good looks
- VR1 pump features a 10 AN O-ring inlet and outlet
- High flow and high pressure with low amperage draw
- Can be fully submerged in the fuel cell or chassis mounted
- Maximum amp draw of the VR1 is 19 AMPS and 38 AMPS for the VR2
- Holley also offers a complete line of fuel filters and fuel pressure regulators that are designed to work as a system with these pumps
About Holley
Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.
Specs
| Application | Universal |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Free Flow GPH | 170 @ 13.8 Volts |
| Free Flow LPH | 644 |
| Fuel Delivery Type | Carburetor |
| Fuel Injection | |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| EFI | |
| Fuel Type | E85 |
| Gasoline | |
| Methanol | |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 7/8-14 IN |
| Inlet Size | 10 AN O-ring |
| Inlet Type | 10 AN ORB |
| Internal Or External | Internal External |
| Material | Aluminum |
| Maximum Amperage Draw | 19 68 |
| Maximum Flow Rating | 170 GPH |
| Maximum Pressure | 130 PS |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 7/8-14 IN |
| Outlet Quantity | 1 |
| Outlet Size | 10 AN O-ring |
| Outlet Type | 10 AN ORB |
| Part Type | Electric Fuel Pump |
| Product Type | Brushless Fuel Pump |
| Pump Body Color | Black |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| UPC | 090127731154 |
| Part Number | 12-1500 |
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
