ELEC PUMP, 400 LPH
Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
Overview
Holley's 100 GPH (gallons per hour) fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles It utilizes -8 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The pump supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas, Race gas, Diesel or E85. The 12-170 fuel pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting). A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included.
Features:
- Designed for high output naturally aspirated and forced induction EFI and carbureted vehicles. The roller vane design pump provides fuel pressure and volume to support up to 900 EFI N/A or 700 EFI Boosted horsepower.
- The 12-170 pump is compatible with Pwm
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
- The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

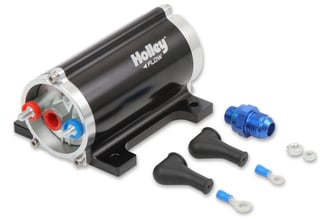

- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
About Holley
Specs
| Application | Universal |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Forced Induction HP@43PSI | 750 |
| Forced Induction HP@60PSI | 700 |
| Forced Induction HP@8PSI | 800 |
| Free Flow GPH | 105 |
| Free Flow LPH | 400 |
| Fuel Delivery Type | Carburetor |
| Fuel Injection | |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| EFI | |
| Fuel Type | Gasoline / Diesel / E85 |
| Gasket Or Seal Included | No |
| GPH@43PSI | 96 |
| GPH@60PSI | 91 |
| GPH@8PSI | 105 |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 3/4-16 IN |
| Inlet Size | 8 AN O-Ring - 3/4-16 SAE |
| Inlet Type | 8 AN ORB |
| Internal Or External | External |
| LPH@43PSI | 364.7 without check valve |
| LPH@60PSI | 343.6 without check valve |
| LPH@8PSI | 390 |
| Material | Aluminum |
| Maximum Flow Rating | 100 GPH |
| Maximum Pressure | 60 PS |
| Naturally Aspirated HP@43PSI | 950 |
| Naturally Aspirated HP@60PSI | 900 |
| Naturally Aspirated HP@8PSI | 1050 |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 9/16-18 IN |
| Outlet Quantity | 1 |
| Outlet Size | 6AN |
| Outlet Type | 6 AN ORB |
| Part Type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Black Anodized |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Warranty | Limited 90 Day |
| Wire Quantity | 2 |
| UPC | 090127060681 |
| Part Number | 12-170 |
Emissions
5
This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
Tech Resources
Warranty Information
Limited 90 Day: See Details
