Overview

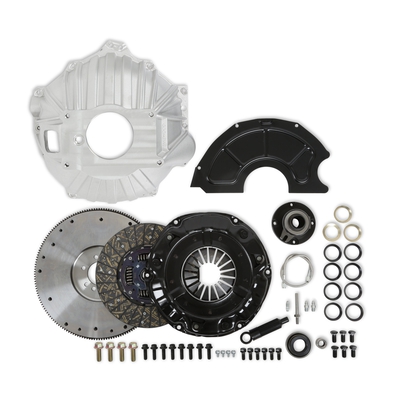

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1955-1985 small or big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr. Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
Features:
- Designed for 1955-1985 Small and Big Block Chevrolet Engines using a TKX or TKO transmission
- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance
- Billet steel 36 lb, 168 tooth neutral balanced flywheel for light weight and strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
- 26 spline, 11-inch clutch disk offers superior clamping force for engines up to 500 hp
- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
- Organic clutch disc features heavy-duty hub spring assembly for increased load capacity
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Specs
| Bellhousing Material | Aluminum |
|---|---|
| Brand | Holley |
| Category | Transmission and Drivetrain |
| Disc Diameter | 11 |
| Disc Material | Organic |
| Disc Style | Spring Hub |
| Emission Code | 6 |
| Engine | Chevrolet Small Block Gen I |
| GM Big Block | |
| Engine Balance | Internal |
| Engine Make | GM |
| Flywheel Balance | Neutral |
| Flywheel Material | Billet Steel |
| Grade Type | Performance |
| Hardware | Steel |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| Pilot Bearing | Roller |
| Pressure Plate Style | Diaphragm |
| Product Type | Installation Kit |
| Release Bearing | Hydraulic |
| Transmission | TKO GM |
| TKX GM | |
| UPC | 090127132548 |
| Part Number | 319-500 |
