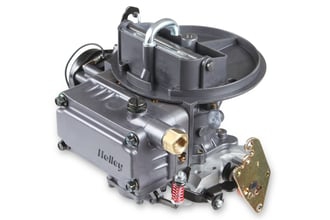

2300 500 CFM UNIVERSAL ALUM MARINE HC
500 CFM - 2300 - Hard Core Gray - Gasoline
Overview
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters. The aluminum Holley 0-80402-2 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a 2300 model 2BBL with electric choke is required
Features:
- Hard Core Gray finish for corrosion resistance
- Universal Marine Calibration
- Factory preset electric choke for easy startups
- 30cc Accelerator pump for smooth starts
- Single feed fuel inlet for easy installation
- J-Style Vent Tubes for marine applications
- Meets Coast Guard Specifications
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
About Holley
Holley Performance Brands is the undisputed leader in carburetors, fuel pumps, fuel injection, intake manifolds, fuel injection, and fuel systems.
Specs
| Barrel Quantity | 2 |
|---|---|
| Barrels | 2 |
| Body Color | Hard Core Gray |
| Body Finish | E-Coated |
| Booster | Downleg |
| Booster Design | Downleg |
| Brand | Holley |
| Carburetor Material | Aluminum |
| Carburetor Use | Marine |
| Category | Carburetors and Components |
| CFM | 500 |
| Choke | Electric |
| Choke Type | Electric |
| Condition | New |
| Cubic Feet Per Minute Rating | 500 |
| Emission Code | 3 |
| Finish | Hard Core Gray |
| Flange Type | 2300 2-BBL |
| Fuel | Gasoline |
| Fuel Inlet | Single |
| Grade Type | Performance |
| Linkage Attached | Yes |
| Marine Approved | Yes |
| Marine Engine Size | Universal |
| Marine Use | Yes |
| Material | Aluminum |
| Model | 2300 |
| Mounting Hole Quantity | 4 |
| Primary Jet Diameter | 75 |
| Primary Main Jet | 75 |
| Primary Power Valve | 4.5 |
| Primary Pump Nozzle Size | 28 |
| Product Type | Marine Carburetor |
| Secondaries | None |
| Spacer Included | No |
| Supercharged Application | No |
| Throttle Bore | 1.750 inch |
| Warranty | Limited 90 Day |
| UPC | 090127107584 |
| Part Number | 0-80402-2 |
Service Parts
3
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
