Overview

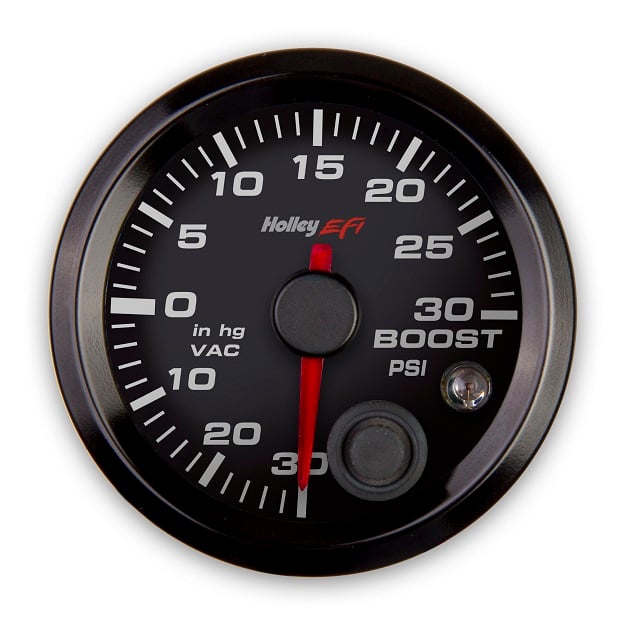

These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection. Can be used with Sniper ECUs when used in conjunction with module part # 554-130.
Features:
- Plug and play compatibility with all Terminator, HP, and Dominator ECU’s (w/ module P/N 554-130)
- No programming necessary; eliminates the need to install duplicate sending units
- Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set both low and high trigger points
- LED warning light brightness can be configured for both day and night
- Peak recall lets user view the min/max gauge readings with the push of a button
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference
- Gauges include 6 in. daisy chain cable and 3 ft. power harness
- Additional length cables and multi-connection power distribution harness available separately
Specs
| Body Color | Black |
|---|---|
| Brand | Holley EFI |
| Category | Body |
| Display Face Diameter | 2-1/16 IN |
| Emission Code | 5 |
| Face Color | Black |
| Face Shape | Round |
| Gauge Background Color | Black |
| Gauge Type | Boost |
| Grade Type | Performance |
| Hand Held Or Fixed Mount | Fixed Mount |
| Illuminated | Yes |
| Maximum Vacuum Reading | 30 INHG |
| Mounting Hardware Included | No |
| Part Type | Multi-Purpose Boost / Vacuum Gauge |
| Product Type | Gauge |
| Size | 2-1/16" |
| Sub Category | Instrument Panel |
| Universal Or Specific Fit | Universal |
| UPC | 090127729458 |
| Part Number | 553-130 |
