Overview

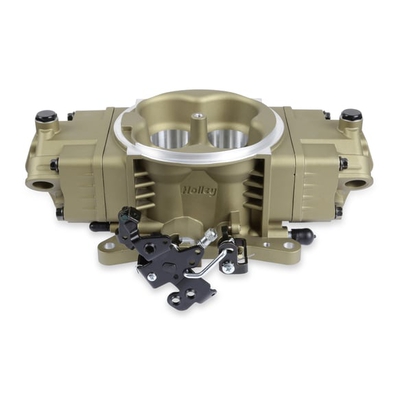

Service Secondary Throttle Body with Injectors. Intended to be used as a service component or when building a custom 4150 style 2x4 setup.
Features:
- Bolt on 2x4 4150 Flange Carburetor Replacement
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- Internal 1bar MAP sensor, built into the Terminator X ECU
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
- Integrated ignition timing control
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash; CAN EGT; and Digital Analog style EFI gauges
- Available in 3 finishes: Shiny, Black, and Gold
Specs
| Adjustable | Yes |
|---|---|
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Gold |
| Emission Code | 3 |
| Finish | Gold |
| Flange Size | 4150 |
| Flange Style | Squarebore |
| Fuel Injectors Included | Yes |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Idle Air Control Motor Included | No |
| Ignition Type | Universal |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Max Horsepower Rating | 650 Naturally Aspirated |
| Mounting Hardware Included | No |
| Part Type | Fuel Injection Throttle Body |
| Product Type | Throttle Body |
| Sub Category | Fuel Injection System and Related Components |
| Throttle Body Finish | Classic Gold |
| Throttle Body Material | Cast Aluminum |
| Throttle Body Spacer Included | No |
| Throttle Bore | 1.75 in. |
| Throttle Position Sensor Included | Yes |
| UPC | 090127130445 |
| Part Number | 534-300 |
