Overview

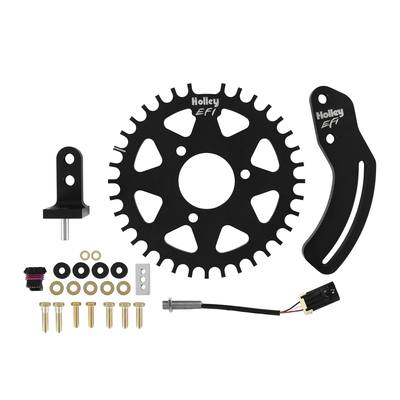

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.
Features:
- 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
- Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring
- All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
- All Grade 8 & Mil. Spec mounting hardware
Specs
| Bracket Color | Black |
|---|---|
| Bracket Material | Aluminum |
| Brand | Holley EFI |
| Category | Ignition |
| Color | Black |
| Diameter | 8 in., 8" |
| Emission Code | 4 |
| Finish | Black Zinc Oxide |
| Grade Type | Performance |
| Make | Chevrolet |
| Part Type | Ignition Crank Trigger Kit |
| Pickup Included | Yes |
| Product Type | Crank Trigger Kit |
| Sensor Dimensions | 12mm x 50mm |
| Sensor Type | Hall Effect |
| Sub Category | Sensors |
| Trigger Type | 36-1 |
| Trigger Wheel Color | Black |
| Trigger Wheel Material | Steel |
| Trigger Wheel Mount Hole Quantity | 3 |
| Trigger Wheel Outside Diameter | 8 IN |
| Trigger Wheel Thickness | 1/4 IN |
| Wheel Width | 1/4" |
| UPC | 090127725061 |
| Part Number | 556-116 |
