Overview
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features:

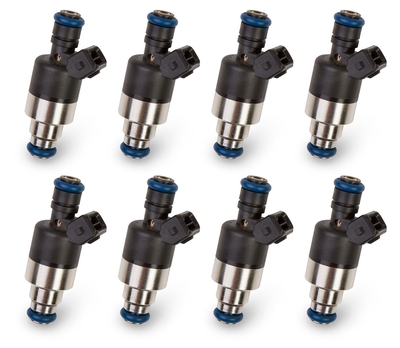

- Bosch/EV1 style performance injectors - Set of 8
- Low impedance (2.0 Ohms) for use with peak and hold drivers
- Rated injector flow: 160 lb/hr @ 43 PSI
- Supports up to 2525 horsepower
- Tri-cone spray pattern
- Maximum recommended fuel pressure: 75 PSI
Specs
| Body Diameter | 0.97 |
|---|---|
| Body Length | 2.85" |
| Body Style | EV1 |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Black |
| Connector Series | EV1 - Jetronic - (Bosch Style) |
| Connector Shape | EV1 - Jetronic - (Bosch Style) |
| Emission Code | 3 |
| Flow Rate | 160 4U |
| Fuel Injection Type | Port |
| Fuel Type | E-85, Gasoline |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Impedance | Low (2.0 Ohm) |
| Mounting Hardware Included | No |
| O-Ring Quantity | 2 per injector |
| O-Ring to O-Ring | 2.415" |
| Part Type | Fuel Injector |
| Product Type | Fuel Injector |
| Rated Injector Flow | 160 lb/hr |
| Retainer Clips Included | No |
| Sub Category | Fuel Injection System and Related Components |
| Terminal Gender | Female |
| UPC | 090127686584 |
| Part Number | 522-168 |
No reviews currently exist for this item.
