Overview

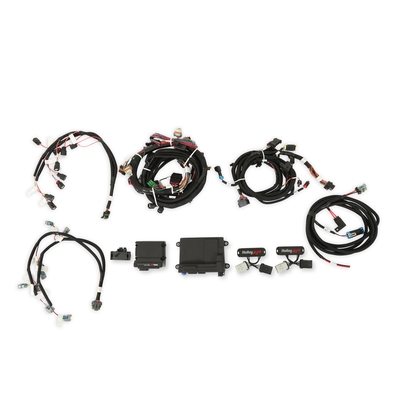

Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Features:
- Now supports 2015-2017 Coyote engines
- HP EFI kits available
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using stock coils (558- 110)
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using Holley EFI coils (558-122)
- Compatible with HP or Dominator EFI
- Pre-calibrated Ford sensor drop downs in the Holley EFI software
- Ti-VCT Cam control down to 400 RPM
- Commanded timing matched within 1 degree
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated stock cam position tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main harnesses come terminated with Ford TPS and IAC connectors, making it easy to convert from a DBW throttle body to a manual throttle body.
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
Specs
| Accelerometer Support | Yes |
|---|---|
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| Category | Air and Fuel Delivery |
| Coil Per Cylinder Ignition Support | Yes |
| Datalogging Support | Yes |
| Dry Nitrous Control | Yes |
| e85 Support | Yes |
| EGT Support | Yes |
| Emission Code | 3 |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | No |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Grade Type | Performance |
| Harness Application | Ford |
| Harness Type | Ignition |
| Ignition Timing Control | Yes |
| Ignition Type | Ford Coyote |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | USCAR (EV6) |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| Multi-Stage Nitrous Control | Yes |
| Part Type | Fuel Injection Conversion Kit |
| Product Type | ECU Assembly |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Sub Category | Service Kits |
| Throttle Position Sensor Included | No |
| Traction Control Support | Yes |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes |
| UPC | 090127030233 |
| Part Number | 550-619N |
