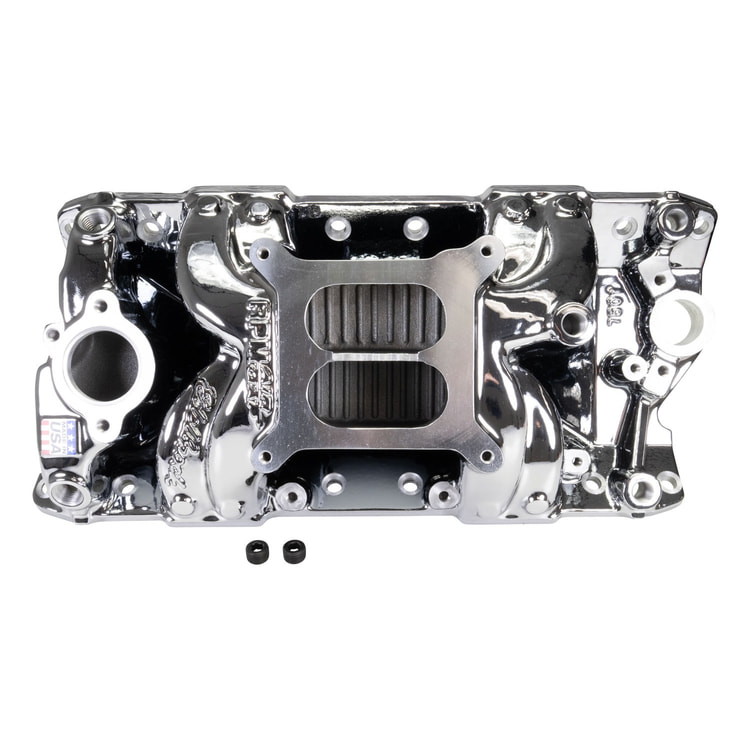

Performer RPM Small Block Chevy AIR-Gap Intake Manifold, Chrome Plasma Finish

Edelbrock part #7501-CP RPM Air-Gap intake manifold is designed for 1955-86 262-400 c.i.d. Chevrolet V8 applications. The award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. The PN 7501-CP version comes with a brilliant Chrome plasma finish that is durable and easy to maintain.

Part Type	Engine Intake Manifold
Manufacturer	Edelbrock
Application	Application Specific
UPC	085347750108
Vehicle Model	Chevrolet
Series	RPM Air-Gap
Grade Type	Performance
Gasket Or Seal Included	No
Availability Note	Available to Order
Warranty	12 Months
RPM Range	1500-6500 RPM
EGR Port	No
Emissions Code
Application Summary	Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Manifold ht: A-4.20", B-5.25" (same as #7101); Carb pad height: 4.72"; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use bracket #8031 or #8036 for 1972-78.; Port exit dimensions: 1.14" x 1.95"; Recommended intake gasket: Edelbrock #7201.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Use #8504 Edelbrock bolt kit; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Finish	Chrome Plasma
Material	Aluminum
Rear Maximum Height	5.250 in
Single Or Dual Plane Type	Dual
