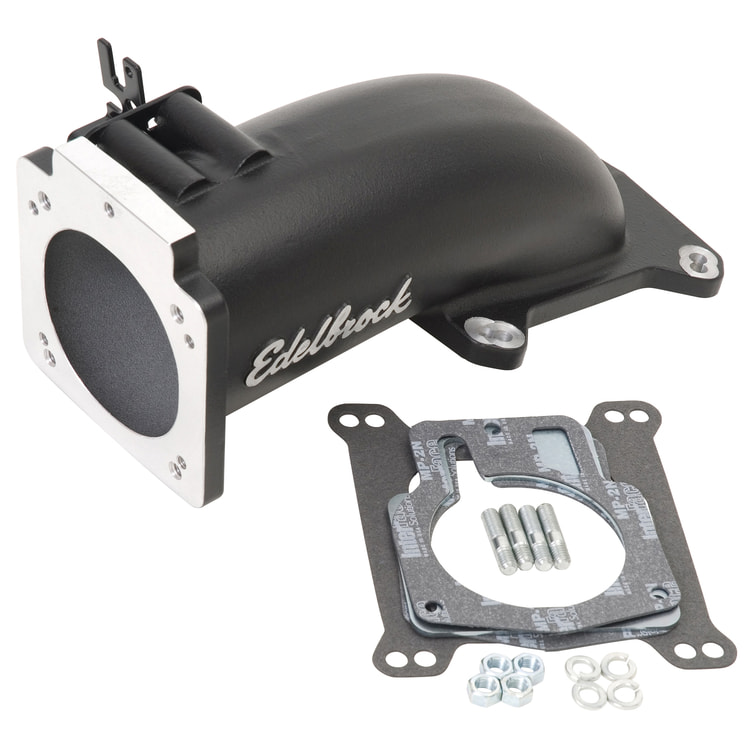

Throttle Body Intake Elbow #38473 Ultra Low, 90mm Opening, Black Powder Coated

The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It can be mounted forward, backward, or sideways on our Victor EFI square bore (4150) style manifolds, when fuel rail or waterneck clearance permits. Because of its low profile, it will not fit Chevy manifolds in the forward mount configuration as it will hit the water neck. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies. The 3847 adaptor features: 1) Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies. 2) Adapts to standard (4150 style) square bore manifolds.3) Fits manifold either in a forwards, backward, or sideways configuration (user determines clearance). 4) The throttle bore center sits 9.00" forward and only .56" up from the manifold 4150 flange. The throttle body flange points down on a 12 Deg angle.5) Internal divider optimizes flow quantity and distribution into the manifold.6) The PN 3848 Low Profile elbow will also be available. It's throttle body bore is 7.00" forward and 2.00" above the manifold flange.

Manufacturer	Edelbrock
Bore Centerline Height	0.56
Application	Universal
UPC	085347384730
Mounting Hole Quantity	8
Gasket Or Seal Included	Yes
Quantity	Sold Individually
Overall Height	3.62
Type	Ultra Low Profile
E85 Compatible	No
Oxygenated Fuel Compatible	No
Main Port Inside Diameter	90.0 mm
Mount Hole Inside Diameter	0.344 in
Main Port Outside Diameter	90.0 mm
Size	90 mm
Availability Note	Available to Order
Warranty	12 Months
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Color	Black
Finish	Black Powder Coated
Length	9.0
Material	Aluminum
Port Quantity	1
Thickness	0.440 in
