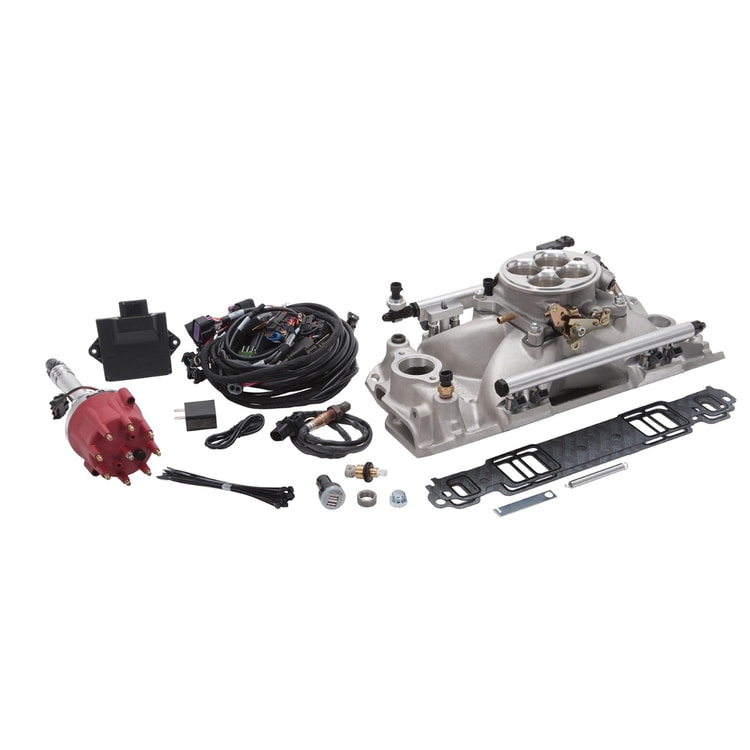

Pro-Flo 4 EFI Traditional 4150-Style Kit #35690 For Chevy Small-Block

The Edelbrock Pro-Flo 4 EFI Kit #35690 for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347356904
System Type	Traditional 4150-Style Kit
Gasket Or Seal Included	Yes
Quantity	Kit
Wiring Harness Included	Yes
Idle Air Control Motor Included	Yes
Fuel Pressure Port	1/8-27 NPT
Idle Air Control Motor Included	Yes
Bore Diameter	1.75
Fuel Injector Type	42 lb/hr
Maximum Horsepower	675
Availability Note	Available to Order
Warranty	24 Months
Distributor Cap Included	Yes
Manifold Color	Satin Finish
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35690 manifold height: 4.58". Throttle body height: 2.25"
Finish	Satin
Throttle Body Type	4 Barrel
