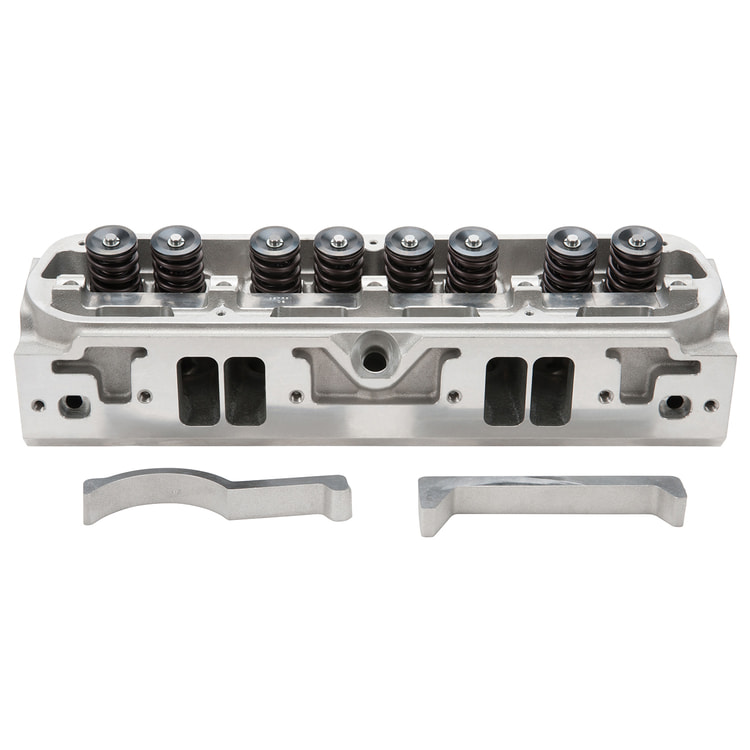

Victor Small-Block Chrysler Cylinder Head W/ Solid Roller Camshaft

Sold Individually

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347617296
Series	Victor
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	500-650 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	2.15 in
Intake Runner Volume	225 cc
Push Rod Diameter	0.312 in
Valve Angle	16 Degree
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.670 in
Valve Stem Diameter	0.3438 in
