Victor Big-Block Chevy Cylinder Head Bare

Sold Individually

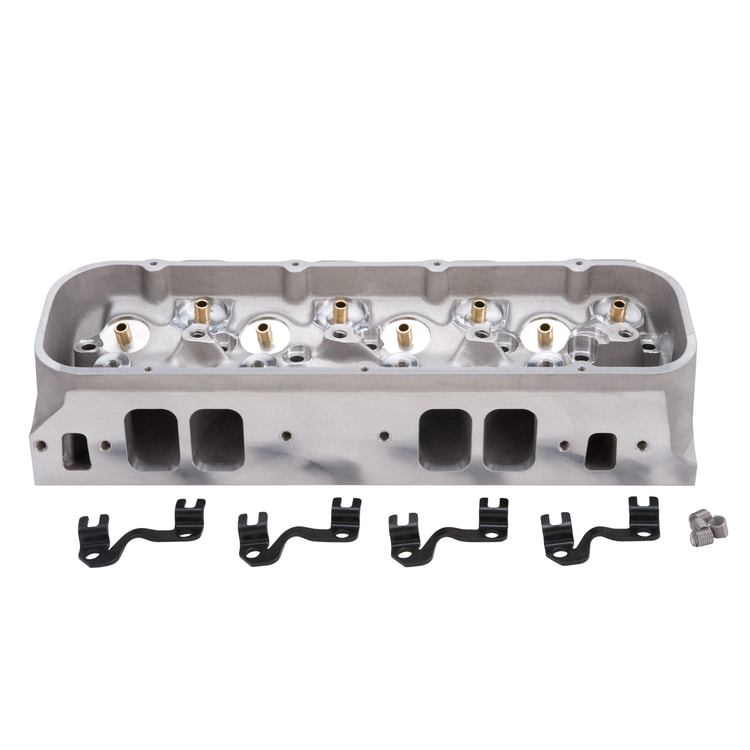

The Edelbrock part #77419 Victor 24 Deg 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534".

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347774197
Series	Victor
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	650-800 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Runner Volume	340 cc
Push Rod Diameter	0.375 in
Valve Angle	24 Degree
