Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft

Sold Individually

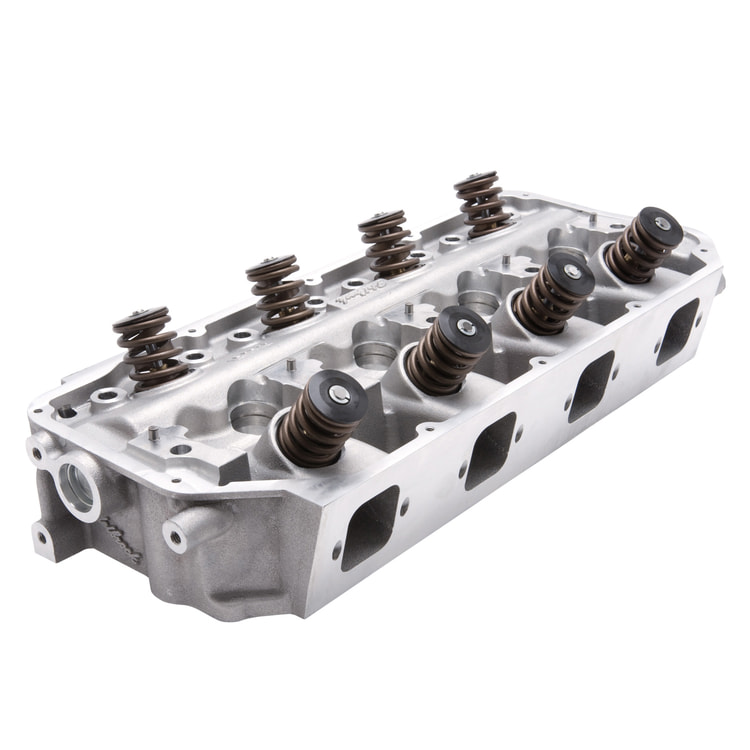

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347611751
Series	Victor Jr.
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Horsepower	550-800 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	2.320 in
Intake Runner Volume	245 cc
Push Rod Diameter	(Suggested) 0.3125 in Or 0.375 in
Valve Angle	Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
Valve Spring Diameter	1.54 in
Valve Spring Maximum Lift	0.700 in
Valve Stem Diameter	0.3125 in
