Victor Jr Big-Block Chevy 106cc Hydraulic Roller Camshaft

Sold Individually

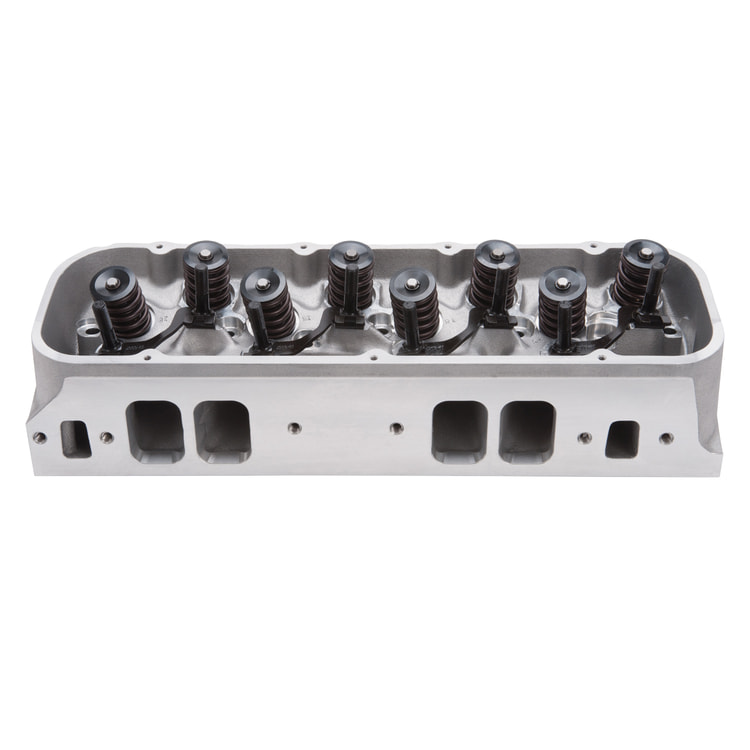

The Edelbrock part #77485 Big-Block Chevy Victor Jr. 24deg cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete 774815 cylinder head with a spring packages to suit hydraulic roller cams. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347774852
Series	Victor Jr.
Material	Aluminum
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	600-800 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Matching stud girdle #7797 must be used with stud mounted rocker arms. Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate).
Intake Valve Diameter	2.25 in
Intake Runner Volume	300 cc
Push Rod Diameter	(Suggested) 0.375 in
Rocker Stud Diameter	0.4375 in
Valve Angle	24 Degree
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.700 in
Valve Stem Diameter	0.3438 in
