Victor Jr #77589 Small-Block Chevy 64cc Hydraulic Roller Camshaft

Sold Individually

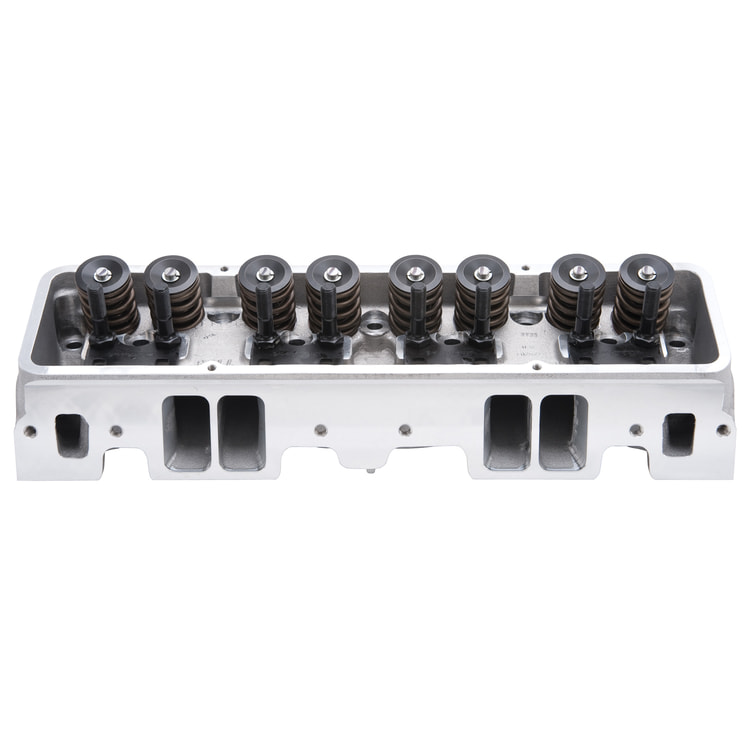

The Edelbrock part #77589 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77589 cylinder head has a 64cc combustion chamber and come with springs for hydraulic roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347775897
Series	Victor Jr.
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	450-550 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	2.08 in
Intake Runner Volume	215 cc
Push Rod Diameter	(Suggested) 0.5625 in
Rocker Stud Diameter	0.4375 in
Valve Angle	23 Degree
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.650 in
Valve Stem Diameter	0.3438 in
