Performer Small-Block Ford 1.90" Cylinder Head Hydraulic Flat Tappet

Sold Individually

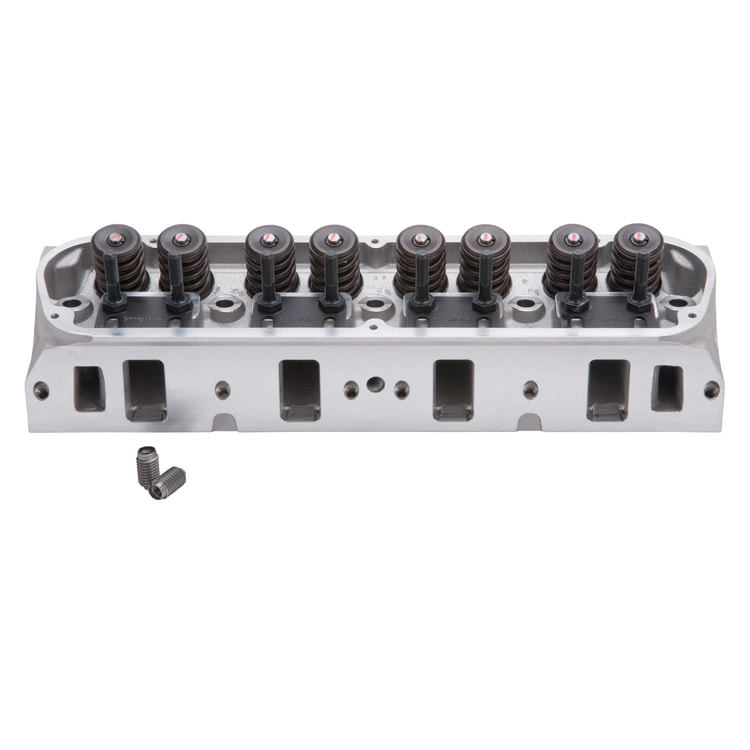

The Edelbrock #60329 Performer cylinder head is designed for use with 1965-95 289, 302 & 351W c.i.d. engine applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347603299
Series	Performer
Material	Aluminum
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	300-450 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code	EO Number: D-215-94
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT APPLICATIONS 1.90" intake valves are for use with stock pistons Will not accept rail rockers 289-302 V8's require head bolt bushing #9680 and either head bolt kit #8552 (7/16") or stock bolts Hardened pushrods required, use Edelbrock #9632 (flat tappet only). Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
Intake Valve Diameter	1.90 in
Intake Runner Volume	170 cc
Push Rod Diameter	(Suggested) 0.3125 in
Rocker Stud Diameter	0.375 in
Valve Angle	20 Degree
Valve Spring Diameter	1.46 in
Valve Spring Maximum Lift	0.575 in
Valve Stem Diameter	0.3438 in
