Performer Pontiac Cylinder Head 87cc Hydraulic Roller Camshaft

Sold Individually

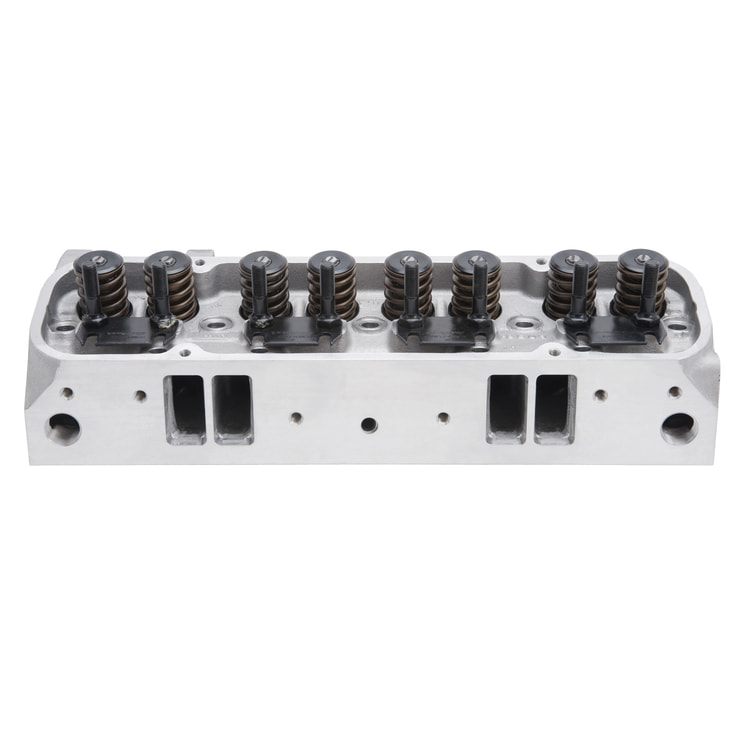

The Edelbrock #60575 Performer cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. The Edelbrock #60575 Performer cylinder heads are 50-state emissions legal for 1965-79 vehicles. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

INSTALLATION NOTE:
• EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS
• These heads require Ram Air IV (round port) style exhaust manifolds or headers
• Edelbrock head bolt kit #8549
• Deck thickness: 5/8"
• Rocker stud diameter: 7/16"
• Pushrod diameter: 5/16" (width of slot in guide plate).

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347605750
Series	Performer
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	400-500 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code	EO Number: D-215-94
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	2.11 in
Intake Runner Volume	215 cc
Push Rod Diameter	(Suggested) 0.3125 in
Rocker Stud Diameter	0.4375 in
Valve Angle	14 Degree
Valve Spring Diameter	1.46 in
Valve Spring Maximum Lift	0.575 in
Valve Stem Diameter	0.3438 in
