RPM CNC Pontiac Cylinder Head 87cc Hydraulic Flat Tappet Camshaft

Sold Individually

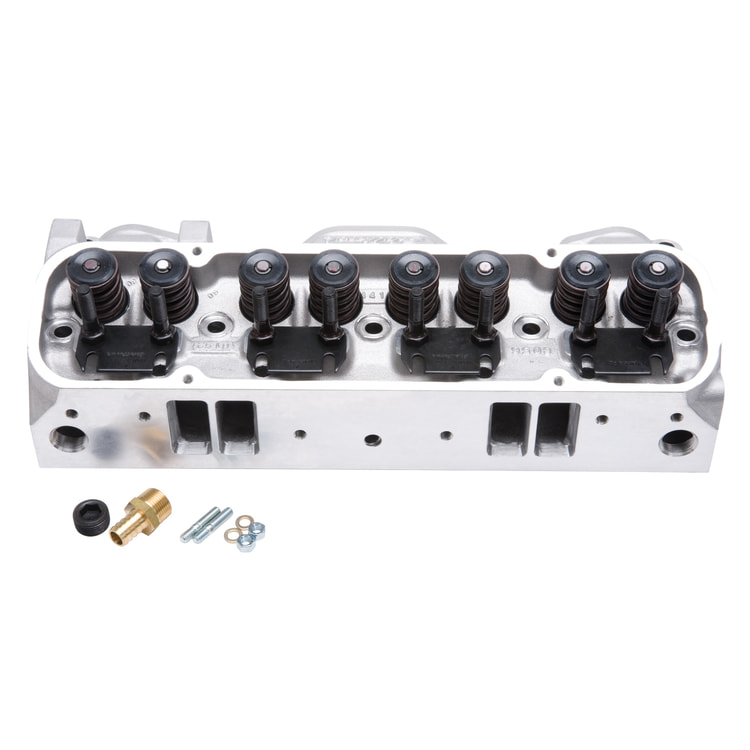

The Edelbrock #61529 Performer RPM CNC Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #61529 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.

More Information

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347615292
Series	Performer RPM
Material	Aluminum
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	450-600 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS Feature CNC machined combustion chamber for a consistent and precise chamber for improved flow performance and spark plug location These heads require Ram Air IV (round port) style exhaust manifolds or headers Edelbrock head bolt kit #8549 Match with Edelbrock complete head gasket set #7382. Deck thickness: 5/8" Rocker stud diameter: 7/16" Pushrod diameter: 5/16" (width of slot in guide plate).
Intake Valve Diameter	2.11 in
Intake Runner Volume	215 cc
Push Rod Diameter	(Suggested) 0.3125 in
Rocker Stud Diameter	0.4375 in
Valve Angle	14 Degree
Valve Spring Diameter	1.46 in
Valve Spring Maximum Lift	0.575 in
Valve Stem Diameter	0.3438 in
