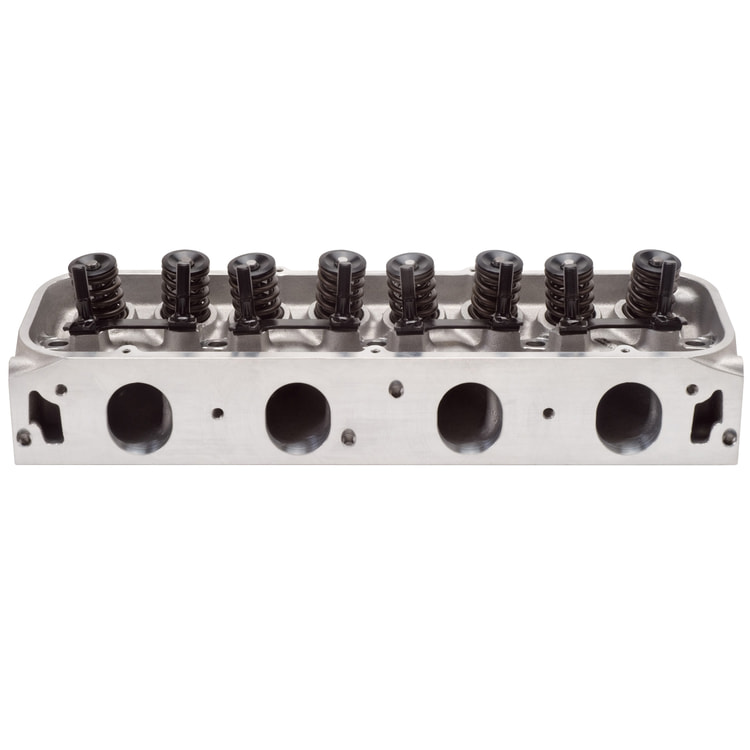

Performer Big-Block Ford 460 95cc Cylinder Head

Sold Individually

The Edelbrock #60669 Performer RPM cylinder head is designed for 1968-87 429/460 Big-Block Ford applications. The Edelbrock #60669 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347606696
Series	Performer RPM
Material	Aluminum
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	500-600 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS Performer RPM 460 heads accept factory exhaust, aftermarket headers and factory valvetrain components. Requires the use of 3/8" diameter pushrods. Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8" Rocker stud diameter: 7/16" Pushrod diameter: 3/8" (width of slot in guide plate). Ideal for high-performance street and drag racing Over 500+ hp at 6500 rpm (+30 hp more than ported factory heads) and 525+ ft-lbs. of torque at 4500 rpm with the Performer RPM Total Power Package® Intake ports can be opened up to match Victor manifolds #2965 and #2966
Intake Valve Diameter	2.19 in
Intake Runner Volume	292 cc
Push Rod Diameter	(Suggested) 0.375 in
Rocker Stud Diameter	0.4375 in
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.700 in
Valve Stem Diameter	0.3438 in
