Flathead Ford Cylinder Head With Block Letter Logo

Set of 2

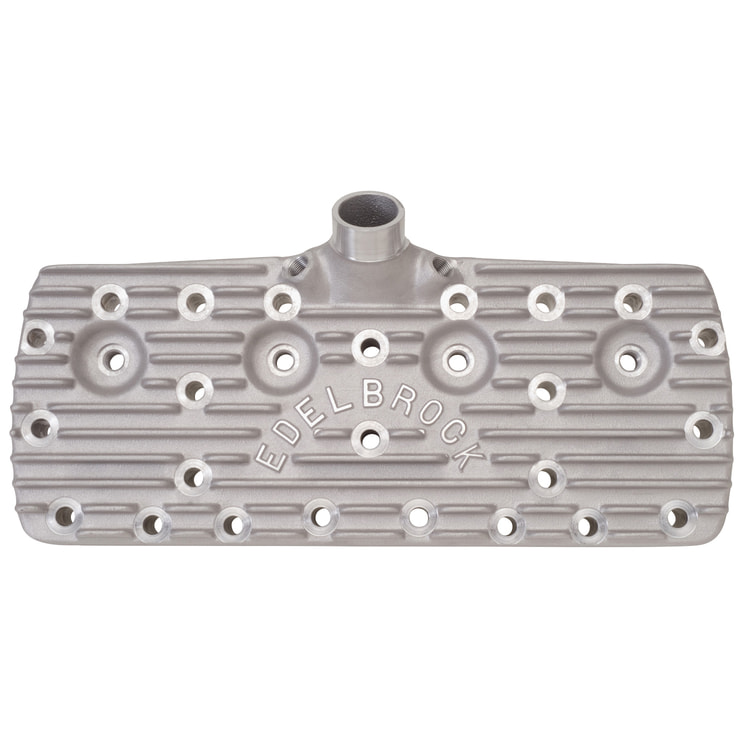

The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347011261
Series	Flathead
Material	Aluminum
Finish	Satin
Quantity	Set of 2
Availability Note	Available to Order
Warranty	12 Months
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Flathead head copper gaskets for 1938-48 use Victor #3036; or Fel-Pro® #7548; or Edelbrock Head Gasket Set #7394; for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Head stud kit for 1938-48, use #8505 Head stud kit for 1949-53, use #850. Generator stud kit for 1938-48, use #8506.
