E-Tec-170 Small-Block Chevy Cylinder Head Hydraulic Roller Camshaft

Sold Individually

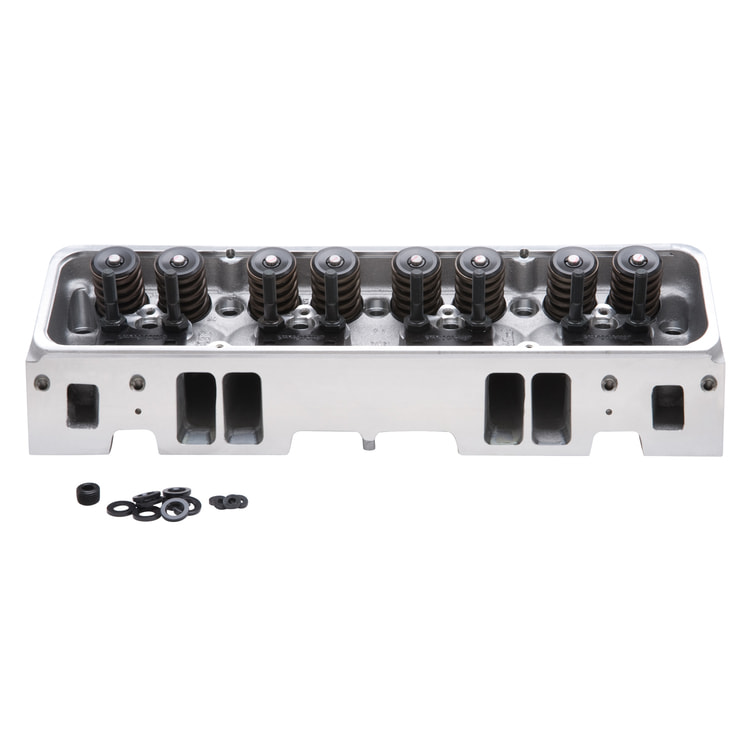

The Edelbrock #60975 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This cylinder head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 head is 50-state street legal.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347609758
Series	E-Tec
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Guide Plate Material	Hardened Steel
Horsepower	350-450 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code	EO Number: D-215-94
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	1.94 in
Intake Runner Volume	170 cc
Push Rod Diameter	(Suggested) 0.3125 in
Rocker Stud Diameter	0.375 in
Valve Angle	23 Degree
Valve Spring Diameter	1.46 in
Valve Spring Maximum Lift	0.575 in
Valve Stem Diameter	0.3438 in
