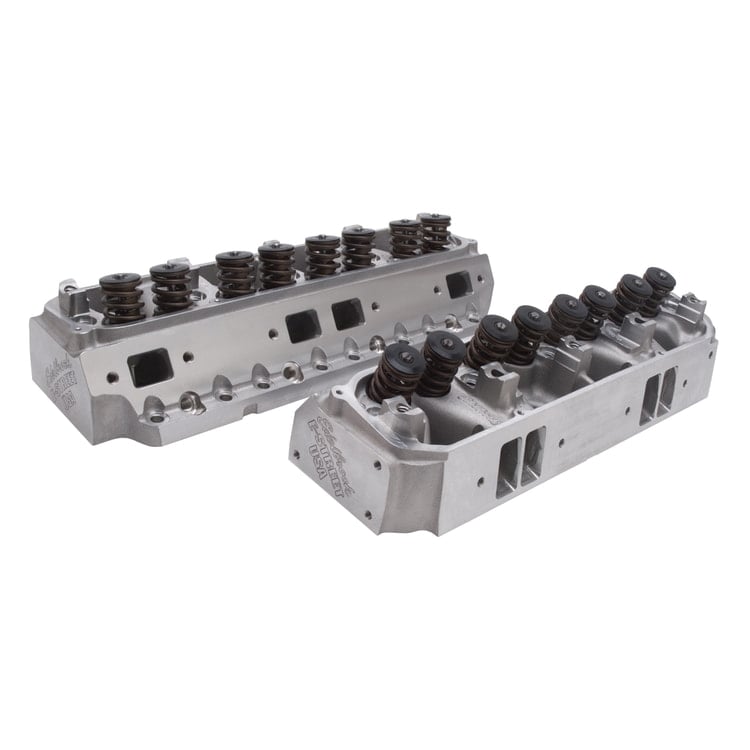

Big-Block Chrysler E-Street Cylinder Heads 84cc

Set of 2

The Edelbrock #5093 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347050932
Series	E-Street
Material	Aluminum
Quantity	Set of 2
Guide Plate Material	Hardened Steel
Horsepower	400-550 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS Deck thickness: 5/8", Pushrod diameter: 3/8" Vacuum advance distributor may not clear cylinder head. The 75cc combustion chamber allows this cylinder head to be used with stock pistons, retaining the 9.5:1 compression The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque These cylinder heads are sold in pairs
Intake Valve Diameter	2.14 in
Intake Runner Volume	210 cc
Push Rod Diameter	(Suggested) 0.375 in
Valve Angle	15 Degree
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.600 in
Valve Stem Diameter	0.3438 in
