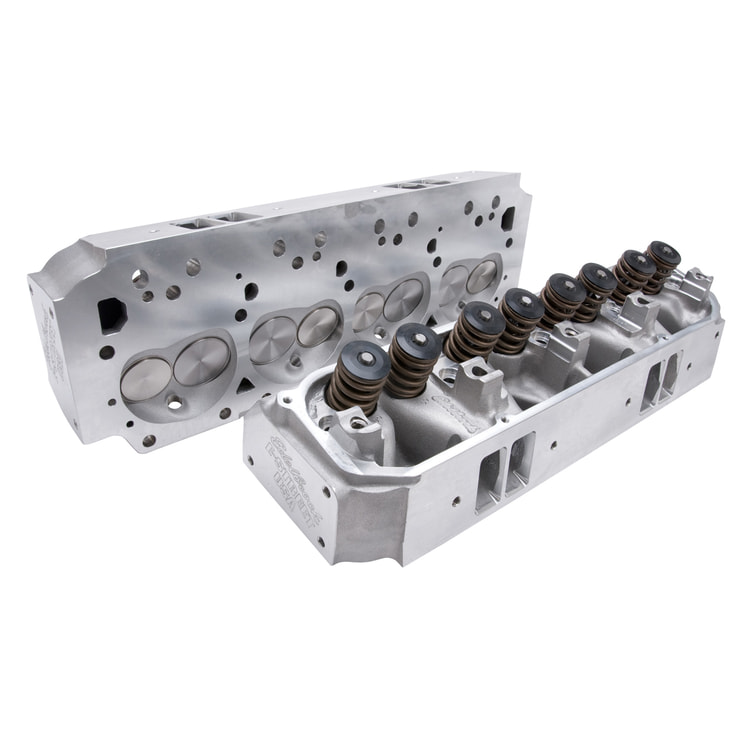

Big-Block Chrysler E-Street Cylinder Heads 75cc

Set of 2

The Edelbrock #5090 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347050901
Series	E-Street
Material	Aluminum
Grade Type	Performance
Quantity	Set of 2
Guide Plate Material	Hardened Steel
Horsepower	400-550 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	2.14 in
Intake Runner Volume	210 cc
Push Rod Diameter	(Suggested) 0.375 in
Valve Angle	15 Degree
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.600 in
Valve Stem Diameter	0.3438 in
