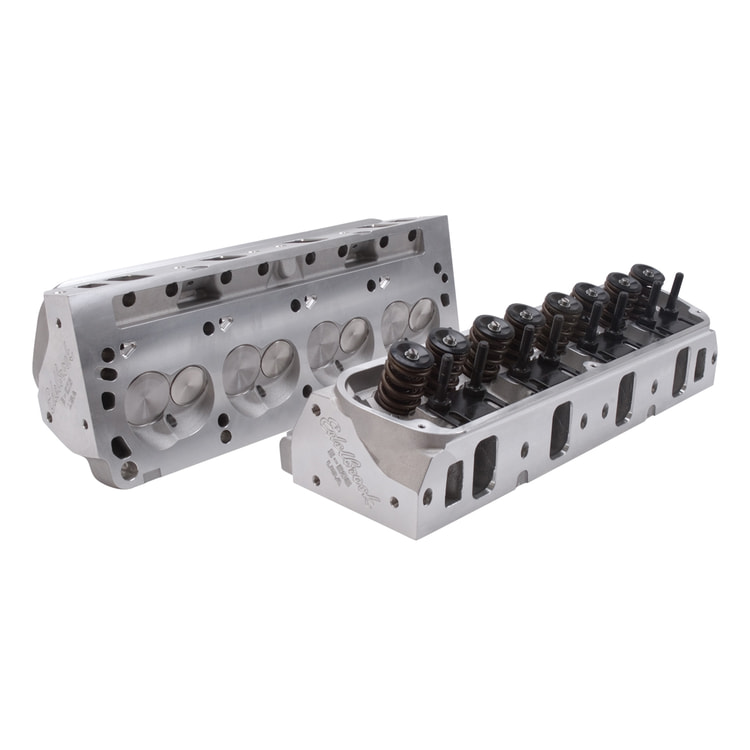

Small-Block Ford E-205 Cylinder Head w/ Hydraulic Roller Camshaft

Set of 2

The Edelbrock #5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347050277
Series	E-Series
Material	Aluminum
Grade Type	Performance
Quantity	Set of 2
Guide Plate Material	Hardened Steel
Horsepower	400-525 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Intake Valve Diameter	2.08 in
Intake Runner Volume	205 cc
Push Rod Diameter	(Suggested) 0.3125 in
Rocker Stud Diameter	0.375 in
Valve Angle	20 Degree
Valve Spring Diameter	1.55 in
Valve Spring Maximum Lift	0.650 in
Valve Stem Diameter	0.3438 in
