Small-Block Chevy E-Series Cylinder Head E-210 Flat Tappet Camshaft

Set of 2

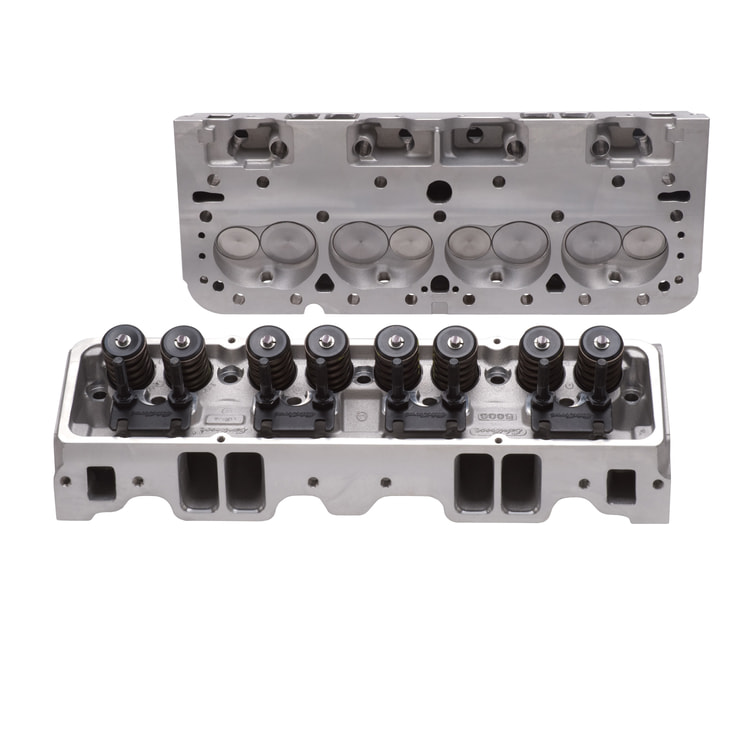

The Edelbrock #5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5028 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347050857
Series	E-Series
Material	Aluminum
Quantity	Set of 2
Guide Plate Material	Hardened Steel
Horsepower	400-550 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 45 deg/Intake 45 deg
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Edelbrock recommends Fel-Pro #1206 intake gaskets for use with E-210 cylinder heads. Cylinder heads provides race-level performance while maintaining full compatibility with off-the-shelf headers and hardware Features larger runners for increased airflow and revised exhaust ports and larger diameter springs for higher lift camshafts Capable of supporting more than 500 naturally aspirated horsepower, and even more in forced induction applications
Intake Valve Diameter	2.08 in
Intake Runner Volume	210 cc
Push Rod Diameter	(Suggested) 0.5625 in
Rocker Stud Diameter	0.375 in
Valve Angle	23 Degree
Valve Spring Diameter	1.46 in
Valve Spring Maximum Lift	0.575 in
Valve Stem Diameter	0.3438 in
