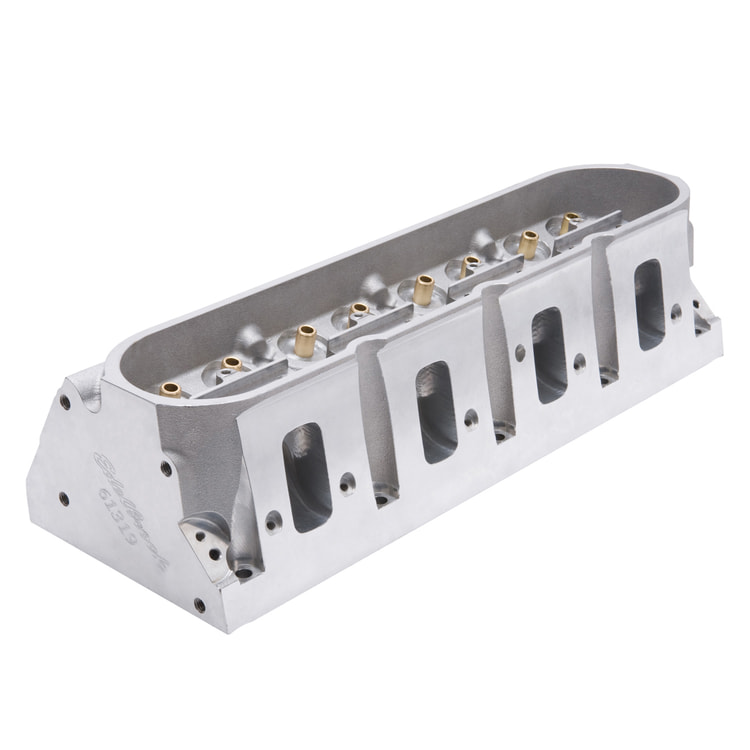

E-CNC Complete GEN III/IV LS Chevy Cylinder Head Small Port BARE

Sold Individually

The Edelbrock #61319 Complete E-CNC LS3 Cylinder Heads are a great general-purpose high performance cylinder head for any street- strip LS engine. These cylinder heads have a high velocity port compared to stock LS3 cylinder heads, making them an ideal upgrade for any cathedral port or 3.89" bore LS application. They feature an improved design and casting that gives cylinder head porters more material to work with compared to stock heads. Like all of our other E-CNC cylinder heads, these feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved performance. Compatible with stock style rocker arms.

Manufacturer	Edelbrock
Application	Application Specific
UPC	085347613199
Series	E-CNC
Material	Aluminum
Grade Type	Performance
Quantity	Sold Individually
Horsepower	400-500 HP
Availability Note	Available to Order
Warranty	12 Months
Seat Angle	Exhaust 39 deg/Intake 45 deg
Emissions Code	EO Number: D-215-98
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Use 14mm x 17.5mm (.708”) reach tapered seat resistor type spark plugs. Heat range requirements will vary by application. For many applications, GM factory spark plugs or equivalent spark plugs such as Champion RS14YC6, NGK TR55, or Denso IT16 spark plugs may be used. Use anti-seize on the plug threads to prevent galling in the cylinder head, and torque to 10 ft./lbs. Do not over tighten sparkplugs! If a short reach plug is used, poor performance and possible engine damage may occur.
Intake Valve Diameter	2.135 in
Intake Runner Volume	230 cc
Push Rod Diameter	0.312 in
Valve Angle	13.25 Degree
Valve Spring Diameter	1.30 in
Valve Spring Maximum Lift	0.680 in
Valve Stem Diameter	0.314961 in
