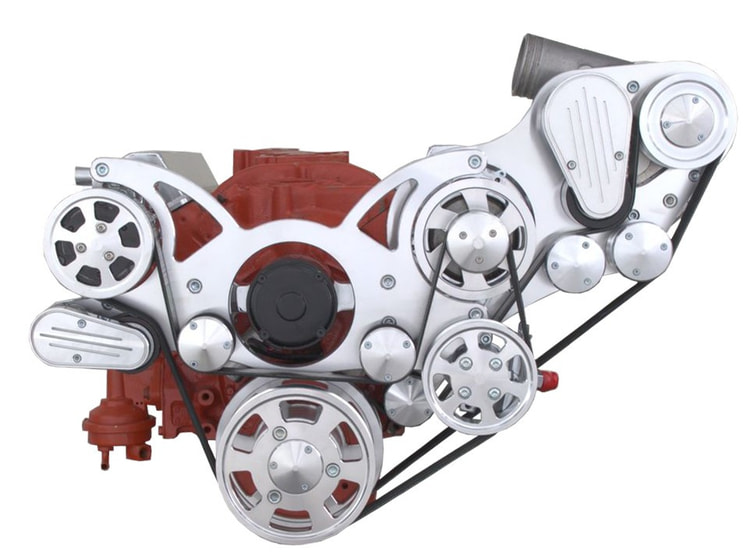

Chevy Small Black Block Serpentine Kit for ProCharger®

283 - 327 - 350 - 400 | Dedicated Supercharger Belt | Polished Finishes | Electric Water Pump

All Inclusive WRAPTOR^TM 8 Track Serpentine System for kit Chevy Small Block engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

ProCharger Kit Includes:

• Billet Aluminum Bracket
• 10 Rib Supercharger Pulley
• Spring Loaded Tensioner
• Idler Pulley(s)
• Crank Pulley
• Premium 10 Rib Belt
• Mounting Hardware

Note: Head unit NOT included; Works with P-1SC or D-1SC

Wraptor System Includes:

• High Flow Aluminum Water Pump*
• 140 Amp, 1-Wire CS130 Alternator*
• Sanden Style Peanut Compressor with 8 Rib Clutch
• Compressor Clutch Cover
• AC Compressor Fitting
• GM Type II Power Steering Pump
• Remote Reservoir
• Premium 8 Rib Belt*
• 8 Rib Water Pump Pulley*
• 8 Rib Alternator Pulley*
• 8 Rib Power Steering Pulley
• Spring Loaded Tensioner*
• Billet Aluminum Bracket*
• Alternator Fan*

**Included with all configurations

Compatible upgrades

• KRC Power Steering Pump
• 300 Amp Alternator

Application Notes

• Power Steering Lines from pump to reservoir not included
• Requires 6.5" Balancer; will not work with 8"
• Procharger Unit needs to be clocked to the 12 O'clock Position
• This item ships in multiple packages
