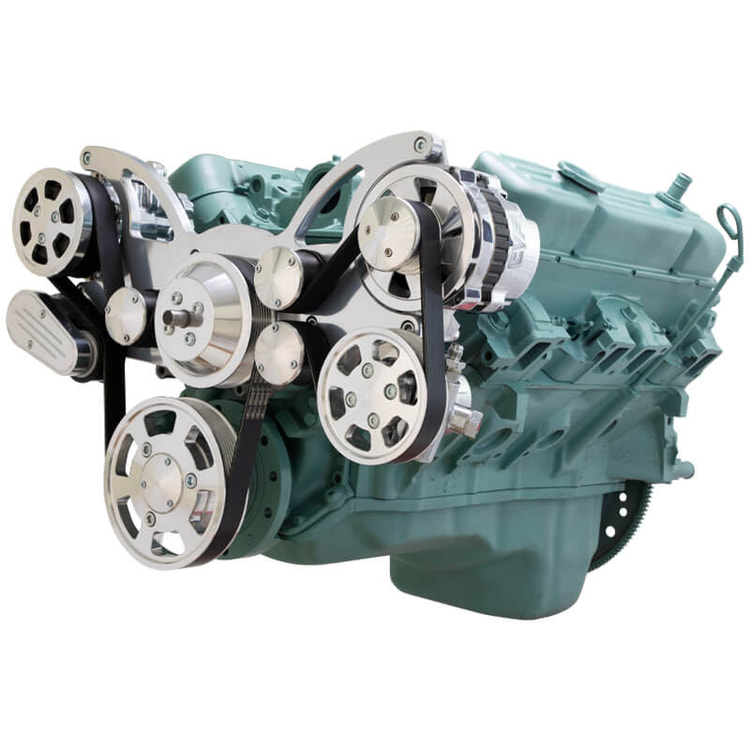

All Inclusive WRAPTORTM 8 Track Serpentine System for Buick engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- Chrome Plated AC Compressor
- AC Compressor Clutch Cover
- Chrome Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket
- Premium 8 Rib Belt*
- Spring Loaded Tensioner*
- Water Pump Pulley*
- Crank Pulley*
- Crank Pulley Spacer*
- Alternator Pulley & Cover*
- Power Steering Pulley
- One Piece Billet Aluminum Bracket*
- Universal Alternator Fan*
- Chrome Plated CS130 140 AMP alternator*
**Included with all configurations
Application Notes:
- Long Body 1971-1976 Water Pump with 4 1/8" Hub Height & 0.625 Pilot-1" tall - such as Murray CP1045 (NOT INCLUDED)
- A/C specific clutch fan needed for water pump pilot
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan (may require long fan spacer)
- Power Steering Lines from pump to reservoir not included
- Hydroboost upgrade available
- Will not work on Buick 350 Engines.
If ordering without accessories, see the requirements below:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - 1971-1976 with 4 1/8" Hub Height & 0.625 Pilot-1" tall
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
| Product Type: | Wraptor - All Inclusive |
| Finish: | Polished |
| Finish: | C3 - Ceramic Clear Coat |
| Belt Type: | Serpentine 8 Rib |
| Water Pump Type: | Mechanical |
| Water Pump Rotation: | Standard |
| Make: | Buick |
| Engine: | 455 Big Block |
| Power Steering Included: | Yes |
| AC Included: | Yes |
| Mounting Position: | Mid-Mount |
Technical Details and Installation Instructions
Buick Big Block Wraptor Instructions
1 Wire Alternator Instructions
Remote Reservoir Instructions
Power Steering Bleeding Instructions
AC Delete Instructions (Non-AC Applications)
