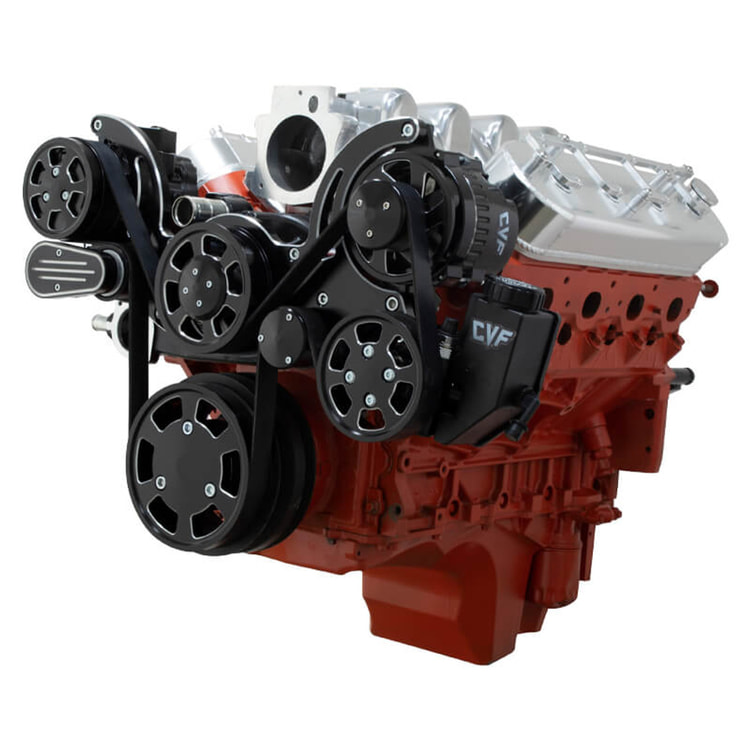

Chevy LS All Inclusive Mid-Mount Wraptor System - Black Diamond

Fits LS1, LS2, LS3, LS6 & LS7 Engines

All Inclusive Accessory Drive Kit for Chevy LS! Includes Hub Adapter, Belts, Remote Reservoir and More!

All Inclusive WRAPTOR^TM 8 Track Front Drive System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

Kit Includes:

• High Flow Aluminum Water Pump*
• GM Type II Power Steering Pump
• 140 Amp, 1-Wire CS130 Alternator*
• Sanden Style Peanut Compressor with 8 Rib Clutch
• Polished Remote Mount Reservoir with Mounting Bracket
• Gates Premium 8 Rib Belt*
• 8 Rib Water Pump Pulley*
• 8 Rib Crank Pulley*
• 8 Rib Alternator Pulley*
• 8 Rib Power Steering Pulley
• Spring Loaded Tensioner*
• Single Bracket*
• Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)*
• Billet Compressor Clutch Cover
• Billet alternator fan*
• All Mounting Hardware*

**Included with all configurations

Tech Tip: It is recommended to use the Power Steering Remote Reservoir for all GM applications for A-Arm Clearance

Application Notes:

• Power Steering Lines from pump to reservoir not included
• Compatible with Hydroboost

• Some drive by wire applications may require Holley part# 717-15
• Call for pricing for kits with out engine accessories
• Not compatible with 102MM or MSD Atomic 2701 Intake
