ReMaster 15/16" Right Port Blk 2-Bolt

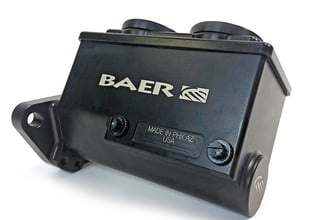

Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 15/16 in. Bore, Right Side Ports, Black Anodized, with a 2-bolt mounting flange fitting many Ford and GM applications.
Overview
This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 15/16" bore, right side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available
Features:
- 2-Bolt GM/Ford Firewall Mounting Bracket
- Fully machined 6061 T6 billet aluminum construction
- Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
- Right Side Ports
- Machined and knurled screw-on caps for easy access to fill without spillage
- Anodized Remasters feature laser-etched logos
About Baer Brakes
Specs
| Area | 0.69 IN |
|---|---|
| Bleeder Hoses Included | No |
| Bleeder Screw Included | No |
| Bore Size | 0.9375 IN |
| 15/16 IN | |
| Box Count | 1 |
| Brake Booster Included | No |
| Brake Pressure Switch(s) Included | No |
| Brand | Baer Brakes |
| Category | Brakes |
| Connector For Warning Light | No |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fittings Included | Yes |
| Flange Type | 2 Bolt GM/Ford |
| Gasket Or Seal Included | No |
| Grade Type | Premium |
| Includes | 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | 6061 T6 billet aluminum |
| Master Cylinder Outlet Port Fittings | 3/16" Inverted Flare and Tube Nuts w/ Brass Seat |
| Banjo w/o Brass Seat | |
| Master Cylinder Outlet Port Quantity | 2 |
| Master Cylinder Outlet Port Size | 3/8-24 |
| Master Cylinder Port Exit | Right Side |
| Mounting Hardware Included | No |
| Product Line | Master Cylinder Assembly |
| Prop 65 - Short Label | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity | Sold individually |
| Remaster Body Color | Black |
| Remaster Body Finish | Anodized |
| Remaster Caps Color | Black |
| Remaster Caps Finish | Anodized |
| Remaster lid Color | Black |
| Remaster lid Finish | Anodized |
| Removable Seats | Yes |
| Reservoir Included | Yes |
| Reservoir Material | 6061 T6 billet aluminum |
| Reservoir Size | 7oz per reservoir, Fill to 75% or 5.25oz per reservoir |
| Reservoir Style | Integral |
| Reservoir Type | Dual |
| Sensor Included | No |
| Series | Remaster |
| Stroke | 1.1 IN |
| System Notes | black anodized,15/16IN bore,right port |
| Title | ReMaster Master Cylinder 2-Bolt GM/Ford, Black Anodized Finish, Right Port, 0.9375" (15/16") Bore |
| Universal Or Specific Fit | Universal |
| Volume Ratio | 2:1 |
| UPC | 844165051213 |
| Part Number | 6801272RP |
