Baer Brakes 14" Pro+ Front Brake Kit, Silver, SDZ, Std. Studs
Fits 1988-98 Chevy/GMC C1500 2WD Trucks, 92-99 Chevy/GMC C1500 2WD SUV's w/React 2" Drop Spindle
Overview

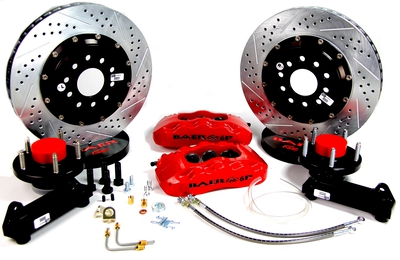

This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat Specs
Applications GM C1500 SUV's 92-99 GM C1500 Trucks 88-98 Axle Front Brand Baer Brakes Caliper 6P Caliper Color Silver Disc Brake Caliper (Front) Piston Quantity 6 Disc Brake Caliper (Front) Type Fixed Disc Brake Pad FMSI Number D0731 Disc Brake Rotor (Front) Construction Vented Disc Brake Rotor (Front) Outside Diameter 14.000 IN Emission Code 6 Export Description Brake Components Fitment Notes w/React 2" Drop Spindles Grade Type Performance Hose Material Stainless Steel Lug Count 5 Lug Min Wheel Dia (verify using template) 18 IN Product Line 14 Inch Pro+ Product Type 14 Inch Pro+ Front Brake Kit Prop 65 (C, R or CR) CR Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov Prop 65 Yes/No Yes Rotor Thickness 1.150 IN Rotor Type 2-Piece Spindle Type React 2" Drop Spindles Spindles Included No Surface Type Slotted, Drilled & Zinc Plated System Notes Designed to be used with React 2" drop spindles Template Q117P Title Pro+ Brake System Front Wheel Lug/Bolt Pattern 5x5.00 Wheel Stud Size M14-1.50 x 47.5mm UPC 090127853771 Part Number 4301579S Tech Resources
