Fits 1979-93 Ford Mustang w/OE V8 Spindles (5-Lug)

Fits 1979-93 Ford Mustang w/OE V8 Spindles (5-Lug)

Price: $4,094.95

Overview

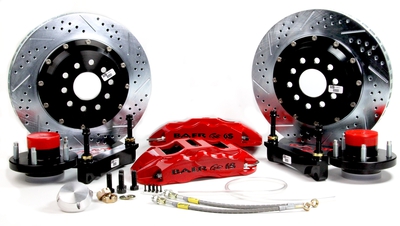

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.

Features:

  • CNC Machined from US Sourced 2618 Aluminum Forging
  • Powder Coated Finish
  • Stainless Steel Pistons, Abutments and Noise Suppression Clips
  • Staggered Pistons to Minimize Uneven Pad Wear
  • Dual Seals, Dust/Weather & Pressure
  • 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
  • 2-Piece Slot,
    Specs
    Applications Ford Mustang 79-93 (w/OE V8 Spindle)
    Axle Front
    Brand Baer Brakes
    Caliper 6S
    Caliper Color Black
    Disc Brake Caliper (Front) Piston Quantity 6
    Disc Brake Caliper (Front) Type Fixed
    Disc Brake Pad FMSI Number D1247
    Disc Brake Rotor (Front) Construction Vented
    Disc Brake Rotor (Front) Outside Diameter 14.000 IN
    Emission Code 6
    Export Description Brake Components
    Fitment Notes w/OE V8 Spindles (5-Lug)
    Grade Type Performance
    Hose Material Stainless Steel
    Lug Count 5 Lug
    Min Wheel Dia (verify using template) 18 IN
    Product Line 14 Inch Extreme+
    Product Type 14 Inch Extreme+ Front Brake Kit
    Prop 65 (C, R or CR) CR
    Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
    Prop 65 Yes/No Yes
    Rotor Thickness 1.250 IN
    Rotor Type 2-Piece
    Surface Type Slotted, Drilled & Zinc Plated
    System Notes Fits 79-93 Fox Mustang V8 spindles, (Spindle modification required, see instructions for details).
    Template N082P
    Title Extreme+ Brake System Front
    Wheel Lug/Bolt Pattern 5x4.50
    Wheel Stud Size 1/2-20" x 2.25"
    UPC 090127864975
    Part Number 4261619B
    Tech Resources

    Instructions - 6000747.pdf

    Instructions - N085P.PDF

    Note: Master cylinder upgrade is recommended 79-86 Cars - Use p/n 6800092 which includes a 15/16" bore master cylinder, 2 hard lines and fittings. This kit is a direct bolt on. 87-93 Cars - Use p/n 6800096 which includes a 15/16" bore master cylinder, 3 hard lines and fittings. This kit is a direct bolt on designed to convert cars with a factory 3-port master cylinder, to a 2-port.** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**
    Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
