Baer Brakes 13" Pro+ Front Brake Kit, Red, SDZ
Fits 1973-87 Chevy/GMC 2WD 1/2 Ton Trucks w/DSE Forged Aluminum 2.5"
Overview

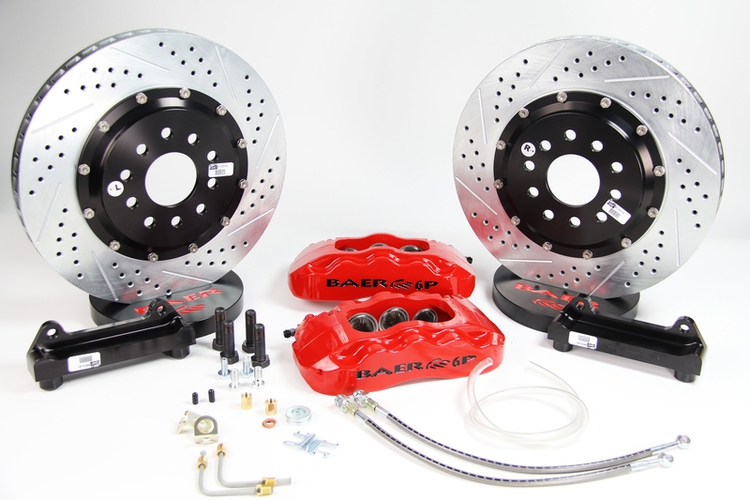

The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 13" Pro+ is designed to fit most 17” or larger wheels.
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish Specs
Applications GM C10 Trucks 60-87 Axle Front Brand Baer Brakes Caliper 6P Caliper Color Red Disc Brake Caliper (Front) Piston Quantity 6 Disc Brake Caliper (Front) Type Fixed Disc Brake Pad FMSI Number D0731 Disc Brake Rotor (Front) Construction Vented Disc Brake Rotor (Front) Outside Diameter 13.000 IN Emission Code 6 Export Description Brake Components Fitment Notes w/DSE Forged Aluminum Modular Spindles Grade Type Performance Hose Material Stainless Steel Lug Count 5 Lug Min Wheel Dia (verify using template) 17 IN Product Line 13 Inch Pro+ Product Type 13 Inch Pro+ Front Brake Kit Prop 65 (C, R or CR) CR Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov Prop 65 - Short Label WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov Prop 65 Yes/No Yes Rotor Thickness 1.100 IN Rotor Type 2-Piece Spindle Type DSE Forged Alum Modular 2.5" Drop Spindles Spindles Included No Surface Type Slotted, Drilled & Zinc Plated System Notes Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included. Template Q072H Title Pro+ Brake System Front Wheel Lug/Bolt Pattern 5x4.75/5x5.00 UPC 090127853795 Part Number 4301586R Tech Resources - Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
