Baer Brakes 13" SS4 Front Brake Kit, Silver, SDZ, Std. Studs
Overview

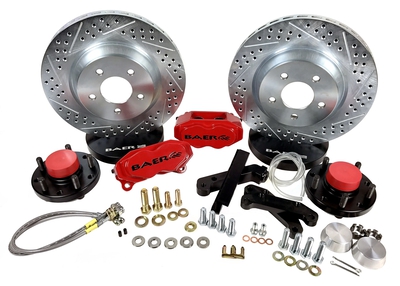

This system features the 4-piston, S4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" SS4 is designed to fit most 17" or larger wheels.
Features:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plate Rotor
- Specs
Applications Ford Fairlane 68-69 (w/Disc) Ford Falcon 68-69 (w/Disc) Ford Mustang 68-69 (w/Disc) Ford Torino 68-69 (w/Disc) Mercury Comet 68-69 (w/Disc) Mercury Cougar 68-69 (w/Disc) Mercury Cyclone 68-69 (w/Disc) Axle Front Brand Baer Brakes Caliper S4 Caliper Color Silver Disc Brake Caliper (Front) Piston Quantity 4 Disc Brake Caliper (Front) Type Fixed Disc Brake Pad FMSI Number DR1 Disc Brake Rotor (Front) Construction Vented Disc Brake Rotor (Front) Outside Diameter 13.000 IN Emission Code 6 Export Description Brake Components Fitment Notes w/OE Disc Brake Spindles Grade Type Performance Hose Material Stainless Steel Lug Count 5 Lug Min Wheel Dia (verify using template) 17 IN Product Line 13 Inch SS4 Product Type 13 Inch SS4 Front Brake Kit Prop 65 (C, R or CR) CR Prop 65 - Long Label WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov Prop 65 Yes/No Yes Rotor Thickness 1.100 IN Rotor Type 1-Piece Surface Type Slotted, Drilled & Zinc Plated System Notes Designed to be used with OE Ford spindles Template S085H Title S4 Brake System Front Wheel Lug/Bolt Pattern 5x4.50 Wheel Stud Size 1/2-20" x 2.25" UPC 844165054108 Part Number 4261447S Tech Resources
