Baer Brakes 13" Pro+ Rear Brake Kit, Silver, SDZ
Overview

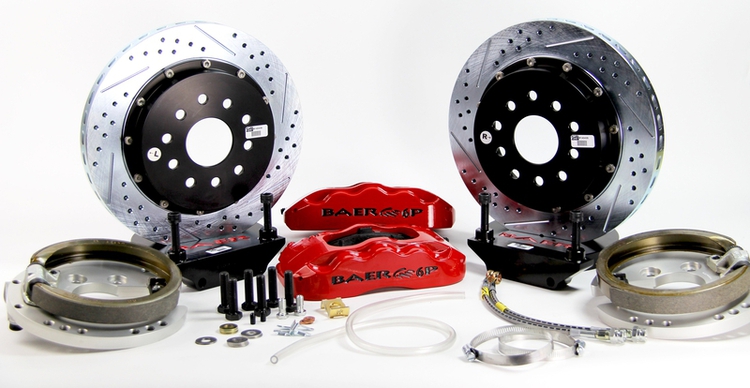

This system features the 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13” Pro+ fits most 17” or larger wheels.
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
About Baer Brakes
Specs
| Applications | GM A-Body 64-77 |
|---|---|
| Axle | Rear |
| Brand | Baer Brakes |
| Caliper | 6P |
| Caliper Color | Silver |
| Disc Brake Caliper (Rear) Piston Quantity | 6 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | D0731 |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 13.000 IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Small Pattern 10/12 Bolt C-clip (BIH) Housing Ends |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | Yes |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 IN |
| Product Line | 13 Inch Pro+ |
| Product Type | 13 Inch Pro+ Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 IN |
| Rotor Type | 2-Piece |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | For stock 10 or 12 bolt C-Clip rear end only |
| Template | Q110H |
| Title | Pro+ Brake System Rear |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| UPC | 844165044437 |
| Part Number | 4302356S |
